Specifications: Peugeot Bipper Tepee 1.3 HDi (75 Hp) FAP 2010, 2011, 2012, 2013, 2014, 2015

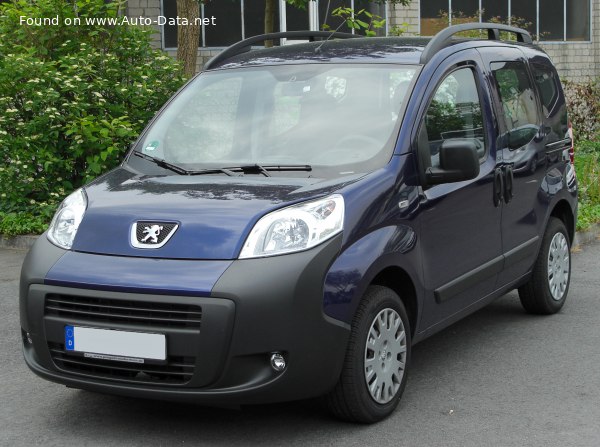

2008 Peugeot Bipper Tepee - Photo 1

Peugeot Bipper Tepee 1.3 HDi (75 Hp) FAP – Full specifications
General information
Brand Peugeot
Model Bipper
Generation Bipper Tepee
Modification (Engine) 1.3 HDi (75 Hp) FAP
Start of production September, 2010 year
End of production September, 2015 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 5.7 l/100 km
41.3 US mpg
49.6 UK mpg
17.5 km/l
Fuel consumption (economy) – extra urban 3.8 l/100 km
61.9 US mpg
74.3 UK mpg
26.3 km/l
Fuel consumption (economy) – combined 4.5 l/100 km
52.3 US mpg
62.8 UK mpg
22.2 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 16.6 sec
Acceleration 0 – 62 mph 16.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 15.8 sec
Maximum speed 152 km/h
94.45 mph
Emission standard Euro 5
Weight-to-power ratio 15.8 kg/Hp, 63.3 Hp/tonne
Weight-to-torque ratio 6.2 kg/Nm, 160.3 Nm/tonne
Engine specs
Power 75 Hp @ 3750 rpm.
Power per litre 60.1 Hp/l
Torque 190 Nm @ 1750 rpm.
140.14 lb.-ft. @ 1750 rpm.
Engine layout Front, Transverse
Engine Model/Code FHZ F13DTE5
Engine displacement 1248 cm3
76.16 cu. in.
Engine configuration Inline
Cylinder Bore 69.6 mm
2.74 in.
Piston Stroke 82 mm
3.23 in.
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 3.2 l
3.38 US qt | 2.82 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.85 l
7.24 US qt | 6.03 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1185 kg
2612.48 lbs.
Max. weight 1700 kg
3747.86 lbs.
Max load 515 kg
1135.38 lbs.
Trunk (boot) space – minimum 356 l
12.57 cu. ft.
Trunk (boot) space – maximum 884 l
31.22 cu. ft.
Fuel tank capacity 45 l
11.89 US gal | 9.9 UK gal
Dimensions
Length 3959 mm
155.87 in.
Width 1816 mm
71.5 in.
Height 1721 mm
67.76 in.
Wheelbase 2513 mm
98.94 in.
Minimum turning circle (turning diameter) 11.8 m
38.71 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Semi-independent, coil spring
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 185/65 R15
Wheel rims size 15
