Specifications: Peugeot Landtrek Simple Cab 2.4i (210 Hp) 4×4 2020, 2021, 2022, 2023, 2024, 2025

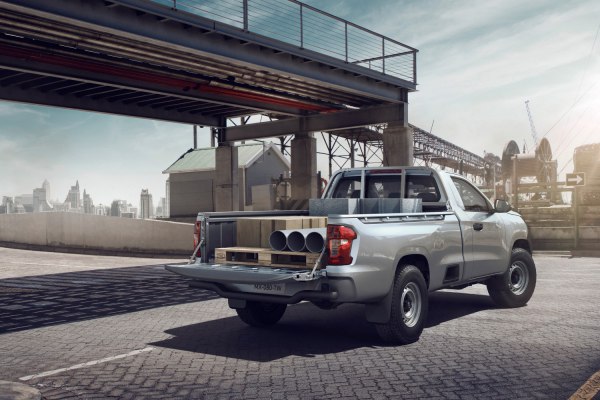

2020 Peugeot Landtrek Simple Cab - Photo 1

Peugeot Landtrek Simple Cab 2.4i (210 Hp) 4×4 – Full specifications
General information
Brand Peugeot
Model Landtrek
Generation Landtrek Simple Cab
Modification (Engine) 2.4i (210 Hp) 4×4
Start of production February, 2020 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 3
Doors 2
Performance specs
Fuel consumption (economy) – combined 10 l/100 km
23.5 US mpg
28.2 UK mpg
10 km/l
CO2 emissions 232 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 13 sec
Acceleration 0 – 62 mph 13 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 12.4 sec
Maximum speed 176 km/h
109.36 mph
Emission standard Euro 5
Weight-to-power ratio 9.8 kg/Hp, 101.9 Hp/tonne
Weight-to-torque ratio 6.4 kg/Nm, 155.3 Nm/tonne
Engine specs
Power 210 Hp @ 5600 rpm.
Power per litre 88.3 Hp/l
Torque 320 Nm @ 2000-4000 rpm.
236.02 lb.-ft. @ 2000-4000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 4K22D4T
Engine displacement 2378 cm3
145.11 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 87 mm
3.43 in.
Piston Stroke 100 mm
3.94 in.
Compression ratio 9.6:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 4.3 l
4.54 US qt | 3.78 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 2060 kg
4541.52 lbs.
Fuel tank capacity 80 l
21.13 US gal | 17.6 UK gal
Dimensions
Length 5390 mm
212.2 in.
Width 1963 mm
77.28 in.
Width including mirrors 2221 mm
87.44 in.
Height 1829-1835 mm
72.01 – 72.24 in.
Wheelbase 3180 mm
125.2 in.
Front track 1610 mm
63.39 in.
Rear (Back) track 1630 mm
64.17 in.
Front overhang 925 mm
36.42 in.
Rear overhang 1285 mm
50.59 in.
Ride height (ground clearance) 214-235 mm
8.43 – 9.25 in.
Approach angle 30.0°
Departure angle 26.0°
Ramp-over (brakeover) angle 25.0°
Wading depth 600 mm
23.62 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Double wishbone
Rear suspension Leaf spring
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 265/65 R17
Wheel rims size 17
