Specifications: Peugeot Partner I (Phase I) 1.4 (75 Hp) 1996, 1997, 1998, 1999, 2000, 2001, 2002

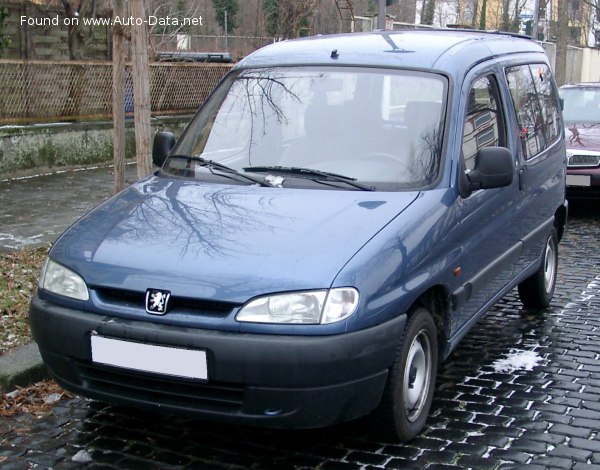

1996 Peugeot Partner I (Phase I) - Photo 1

Peugeot Partner I (Phase I) 1.4 (75 Hp) – Full specifications
General information
Brand Peugeot
Model Partner
Generation Partner I (Phase I)
Modification (Engine) 1.4 (75 Hp)
Start of production 1996 year
End of production 2002 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban (NEDC) 8.9 l/100 km
26.4 US mpg
31.7 UK mpg
11.2 km/l
Fuel consumption (economy) – extra urban (NEDC) 6 l/100 km
39.2 US mpg
47.1 UK mpg
16.7 km/l
Fuel consumption (economy) – combined (NEDC) 7.1 l/100 km
33.1 US mpg
39.8 UK mpg
14.1 km/l
CO2 emissions (NEDC) 168 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 17.5 sec
Acceleration 0 – 62 mph 17.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 16.6 sec
Maximum speed 150 km/h
93.21 mph
Weight-to-power ratio 15.2 kg/Hp, 65.8 Hp/tonne
Weight-to-torque ratio 9.5 kg/Nm, 105.3 Nm/tonne
Engine specs
Power 75 Hp @ 5500 rpm.
Power per litre 55.1 Hp/l
Torque 120 Nm @ 3400 rpm.
88.51 lb.-ft. @ 3400 rpm.
Engine layout Front, Transverse
Engine Model/Code KFX TU3JP
Engine displacement 1360 cm3
82.99 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 75 mm
2.95 in.
Piston Stroke 77 mm
3.03 in.
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain SOHC
Engine oil capacity 3 l
3.17 US qt | 2.64 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8 l
8.45 US qt | 7.04 UK qt

Space, Volume and weights
Kerb Weight 1140 kg
2513.27 lbs.
Max. weight 1740 kg
3836.04 lbs.
Max load 600 kg
1322.77 lbs.
Trunk (boot) space – minimum 624 l
22.04 cu. ft.
Trunk (boot) space – maximum 2800 l
98.88 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (12%) 900 kg
1984.16 lbs.
Permitted trailer load without brakes 500 kg
1102.31 lbs.
Permitted towbar download 70 kg
154.32 lbs.
Dimensions
Length 4110 mm
161.81 in.
Width 1720 mm
67.72 in.
Width including mirrors 1960 mm
77.17 in.
Height 1870 mm
73.62 in.
Wheelbase 2690 mm
105.91 in.
Front track 1420 mm
55.91 in.
Rear (Back) track 1440 mm
56.69 in.
Front overhang 820 mm
32.28 in.
Rear overhang 600 mm
23.62 in.
Minimum turning circle (turning diameter) 11.55 m
37.89 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Torsion
Front brakes Disc
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 175/65 R14; 175/70 R14; 185/65 R15
Wheel rims size 14; 15
