Specifications: Porsche 911 (992) Turbo 3.8 (580 Hp) PDK 2020, 2021, 2022, 2023, 2024

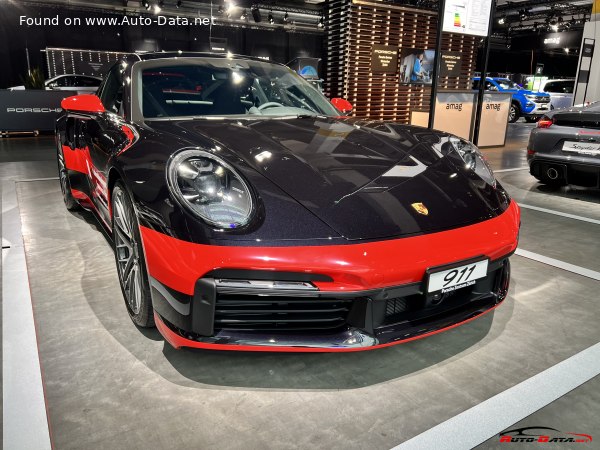

2019 Porsche 911 (992) - Photo 1

Porsche 911 (992) Turbo 3.8 (580 Hp) PDK – Full specifications
General information
Brand Porsche
Model 911
Generation 911 (992)
Modification (Engine) Turbo 3.8 (580 Hp) PDK
Start of production July, 2020 year
End of production May, 2024 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 4
Doors 2
Performance specs
Fuel consumption (economy) – urban (NEDC) 15.3 l/100 km
15.4 US mpg
18.5 UK mpg
6.5 km/l
Fuel consumption (economy) – extra urban (NEDC) 8.7 l/100 km
27 US mpg
32.5 UK mpg
11.5 km/l
Fuel consumption (economy) – combined (NEDC) 11.1 l/100 km
21.2 US mpg
25.4 UK mpg
9 km/l
CO2 emissions (NEDC) 254 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 2.8 sec
Acceleration 0 – 62 mph 2.8 sec
Acceleration 0 – 60 mph 2.7 sec
Acceleration 0 – 200 km/h 9.7 sec
Maximum speed 320 km/h
198.84 mph
Emission standard Euro 6d-ISC-FCM
Weight-to-power ratio 2.8 kg/Hp, 353.7 Hp/tonne
Weight-to-torque ratio 2.2 kg/Nm, 457.3 Nm/tonne
Engine specs
Power 580 Hp @ 6500 rpm.
Power per litre 154.9 Hp/l
Torque 750 Nm @ 2250-4500 rpm.
553.17 lb.-ft. @ 2250-4500 rpm.
Maximum engine speed 7200 rpm.
Engine layout Rear, Longitudinal
Engine Model/Code DKEA
Engine displacement 3745 cm3
228.53 cu. in.
Number of cylinders 6
Engine configuration Boxer
Cylinder Bore 102 mm
4.02 in.
Piston Stroke 76.4 mm
3.01 in.
Compression ratio 8.7:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration BiTurbo, Intercooler
Engine oil capacity 8.3 l
8.77 US qt | 7.3 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1640 kg
3615.58 lbs.
Max. weight 2040 kg
4497.43 lbs.
Max load 400 kg
881.85 lbs.
Trunk (boot) space – minimum 264 l
9.32 cu. ft.
Fuel tank capacity 67 l
17.7 US gal | 14.74 UK gal
Dimensions
Length 4535 mm
178.54 in.
Width 1900 mm
74.8 in.
Width including mirrors 2024 mm
79.69 in.
Height 1303 mm
51.3 in.
Wheelbase 2450 mm
96.46 in.
Front track 1583 mm
62.32 in.
Rear (Back) track 1600 mm
62.99 in.
Drag coefficient (Cd) 0.33
Minimum turning circle (turning diameter) 10.9 m
35.76 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission PDK
Front suspension Independent type McPherson
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs, 408 mm
Rear brakes Ventilated discs, 380 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size Front wheel tires: 255/35 ZR20
Rear wheel tires: 315/30 ZR21
Wheel rims size Front wheel rims: 9 J x 20
Rear wheel rims: 11.5 J x 21
