Specifications: Porsche 911 Cabriolet (G) 3.2 Carrera CAT (218 Hp) 1986, 1987, 1988, 1989

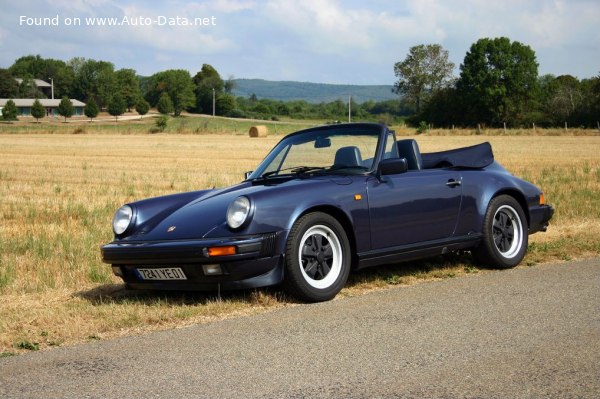

1983 Porsche 911 Cabriolet (G) - Photo 1

Porsche 911 Cabriolet (G) 3.2 Carrera CAT (218 Hp) – Full specifications
General information
Brand Porsche
Model 911
Generation 911 Cabriolet (G)
Modification (Engine) 3.2 Carrera CAT (218 Hp)
Start of production 1986 year
End of production 1989 year
Powertrain Architecture Internal Combustion engine
Body type Cabriolet
Seats 4
Doors 2
Performance specs
Fuel consumption (economy) – urban 14.9 l/100 km
15.8 US mpg
19 UK mpg
6.7 km/l
Fuel consumption (economy) – extra urban 7.9 l/100 km
29.8 US mpg
35.8 UK mpg
12.7 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 60 mph 6.1 sec
Maximum speed 240 km/h
149.13 mph
Weight-to-power ratio 5.7 kg/Hp, 174.4 Hp/tonne
Weight-to-torque ratio 4.7 kg/Nm, 211.2 Nm/tonne
Engine specs
Power 218 Hp @ 5900 rpm.
Power per litre 68.9 Hp/l
Torque 264 Nm @ 4800 rpm.
194.72 lb.-ft. @ 4800 rpm.
Engine layout Rear, Longitudinal
Engine Model/Code 930.25
Engine displacement 3164 cm3
193.08 cu. in.
Number of cylinders 6
Engine configuration Boxer
Compression ratio 9.5:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain SOHC
Engine oil capacity 10 l
10.57 US qt | 8.8 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 1250 kg
2755.78 lbs.
Fuel tank capacity 85 l
22.45 US gal | 18.7 UK gal
Dimensions
Length 4291 mm
168.94 in.
Width 1652 mm
65.04 in.
Height 1320 mm
51.97 in.
Wheelbase 2272 mm
89.45 in.
Drag coefficient (Cd) 0.39
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent type McPherson, Wishbone
Rear suspension Independent multi-link suspension, Trailing arm
Front brakes Ventilated discs
Rear brakes Ventilated discs
Steering type Steering rack and pinion
Tires size Front wheel tires: 195/65 R15
Rear wheel tires: 215/60 R15
Wheel rims size Front wheel rims: 6J x 15
Rear wheel rims: 7J x 15
