Specifications: Porsche 911 Coupe (F) 2.0 S (170 Hp) 1969

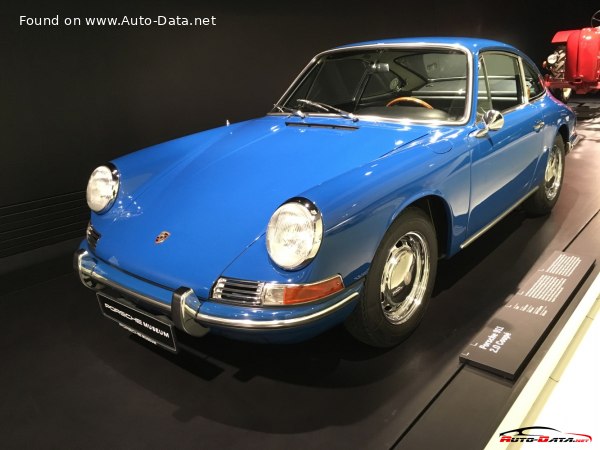

1964 Porsche 911 Coupe (F) - Photo 1

Porsche 911 Coupe (F) 2.0 S (170 Hp) – Full specifications
General information
Brand Porsche
Model 911
Generation 911 Coupe (F)
Modification (Engine) 2.0 S (170 Hp)
Start of production 1969 year
End of production 1969 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 4
Doors 2
Performance specs
Fuel consumption (economy) – combined 9.6 l/100 km
24.5 US mpg
29.4 UK mpg
10.4 km/l
Fuel Type Petrol (Gasoline)
Maximum speed 230 km/h
142.92 mph
Weight-to-power ratio 6.3 kg/Hp, 158.9 Hp/tonne
Weight-to-torque ratio 5.3 kg/Nm, 188.8 Nm/tonne
Engine specs
Power 170 Hp @ 6800 rpm.
Power per litre 85.4 Hp/l
Torque 202 Nm @ 5500 rpm.
148.99 lb.-ft. @ 5500 rpm.
Engine layout Rear, Longitudinal
Engine Model/Code 901.10
Engine displacement 1991 cm3
121.5 cu. in.
Number of cylinders 6
Engine configuration Boxer
Cylinder Bore 80 mm
3.15 in.
Piston Stroke 66 mm
2.6 in.
Compression ratio 9.9:1
Number of valves per cylinder 2
Engine aspiration Naturally aspirated engine
Engine oil capacity 9 l
9.51 US qt | 7.92 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 1070 kg
2358.95 lbs.
Max. weight 1350 kg
2976.24 lbs.
Max load 280 kg
617.29 lbs.
Fuel tank capacity 62 l
16.38 US gal | 13.64 UK gal
Dimensions
Length 4200 mm
165.35 in.
Width 1610 mm
63.39 in.
Height 1320 mm
51.97 in.
Wheelbase 2268 mm
89.29 in.
Front track 1374 mm
54.09 in.
Rear (Back) track 1355 mm
53.35 in.
Front overhang 920 mm
36.22 in.
Rear overhang 1012 mm
39.84 in.
Ride height (ground clearance) 150 mm
5.91 in.
Minimum turning circle (turning diameter) 10.7 m
35.1 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Spring Strut, Wishbone
Rear suspension Trailing arm
Front brakes Disc, 228 mm
Rear brakes Disc, 224 mm
Steering type Steering rack and pinion
Tires size 185/70 R15
Wheel rims size 6J x 15
