Specifications: Porsche 911 Targa (G) 3.0 Carrera (200 Hp) 1977, 1978, 1979

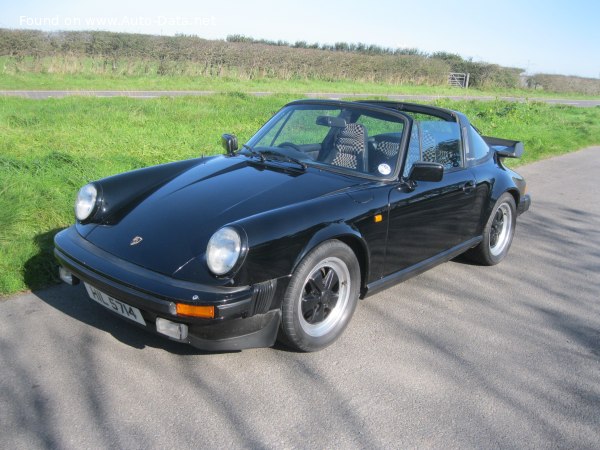

1974 Porsche 911 Targa (G) - Photo 1

Porsche 911 Targa (G) 3.0 Carrera (200 Hp) – Full specifications
General information
Brand Porsche
Model 911
Generation 911 Targa (G)
Modification (Engine) 3.0 Carrera (200 Hp)
Start of production 1977 year
End of production 1979 year
Powertrain Architecture Internal Combustion engine
Body type Targa
Seats 4
Doors 2
Performance specs
Fuel Type Petrol (Gasoline)
Engine specs
Power 200 Hp @ 6000 rpm.
Power per litre 66.8 Hp/l
Torque 255 Nm @ 4200 rpm.
188.08 lb.-ft. @ 4200 rpm.
Maximum engine speed 6800 rpm.
Engine layout Rear, Longitudinal
Engine Model/Code 930.02
Engine displacement 2993 cm3
182.64 cu. in.
Number of cylinders 6
Engine configuration Boxer
Cylinder Bore 95 mm
3.74 in.
Piston Stroke 70.4 mm
2.77 in.
Compression ratio 8.5:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain SOHC
Engine oil capacity 10 l
10.57 US qt | 8.8 UK qt
Engine oil specification Log in to see.Log in to see.

Dimensions
Length 4291 mm
168.94 in.
Width 1652 mm
65.04 in.
Height 1320 mm
51.97 in.
Wheelbase 2272 mm
89.45 in.
Front track 1369 mm
53.9 in.
Rear (Back) track 1380 mm
54.33 in.
Front overhang 932 mm
36.69 in.
Rear overhang 1087 mm
42.8 in.
Ride height (ground clearance) 120 mm
4.72 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Spring Strut, Wishbone
Rear suspension Trailing arm
Front brakes Ventilated discs, 282.5 mm
Rear brakes Ventilated discs, 290 mm
Steering type Steering rack and pinion
Tires size Front wheel tires: 185/70 R15; 205/55 R16
Rear wheel tires: 215/60 R15, 225/50 R16
Wheel rims size Front wheel rims: 6J x 15; 6 J x 16
Rear wheel rims: 7J x 15, 7J x 16
