Specifications: Porsche 924 2.0 Carrera GT (209 Hp) 1980, 1981

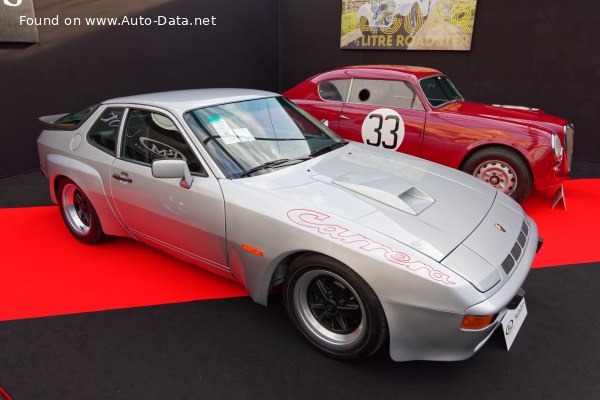

1976 Porsche 924 - Photo 1

Porsche 924 2.0 Carrera GT (209 Hp) – Full specifications
General information
Brand Porsche
Model 924
Generation 924
Modification (Engine) 2.0 Carrera GT (209 Hp)
Start of production 1980 year
End of production 1981 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 4
Doors 2
Performance specs
Fuel Type Petrol (Gasoline)
Maximum speed 240 km/h
149.13 mph
Weight-to-power ratio 5.6 kg/Hp, 177.1 Hp/tonne
Engine specs
Power 209 Hp @ 6000 rpm.
Power per litre 105.3 Hp/l
Engine layout Rear, Longitudinal
Engine Model/Code M31.50
Engine displacement 1984 cm3
121.07 cu. in.
Number of cylinders 4
Engine configuration Boxer
Cylinder Bore 86.5 mm
3.41 in.
Piston Stroke 84.4 mm
3.32 in.
Fuel injection system Multi-port manifold injection
Engine aspiration Turbocharger
Engine oil capacity 5 l
5.28 US qt | 4.4 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7 l
7.4 US qt | 6.16 UK qt

Space, Volume and weights
Kerb Weight 1180 kg
2601.45 lbs.
Max. weight 1460 kg
3218.75 lbs.
Max load 280 kg
617.29 lbs.
Max. roof load 35 kg
77.16 lbs.
Dimensions
Length 4280 mm
168.5 in.
Width 1735 mm
68.31 in.
Height 1275 mm
50.2 in.
Wheelbase 2400 mm
94.49 in.
Front track 1477 mm
58.15 in.
Rear (Back) track 1451 mm
57.13 in.
Front overhang 870 mm
34.25 in.
Rear overhang 1010 mm
39.76 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar, Wishbone
Rear suspension Trailing arm, Torsion
Tires size 215/60 R15
Wheel rims size 7J x 15
