Specifications: Porsche Boxster (987) 2.7 (240 Hp) Tiptronic 2004, 2005, 2006

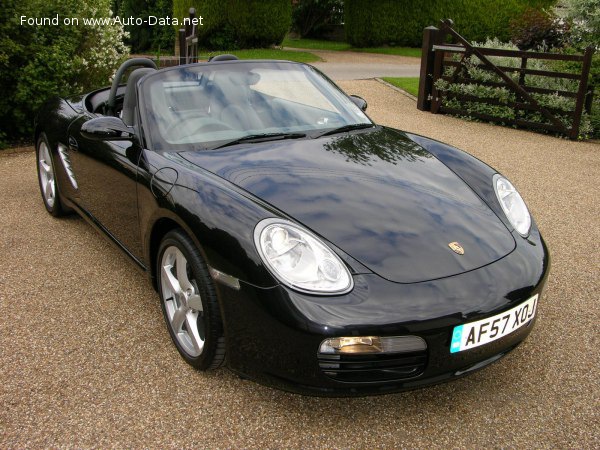

2005 Porsche Boxster (987) - Photo 1

Porsche Boxster (987) 2.7 (240 Hp) Tiptronic – Full specifications
General information
Brand Porsche
Model Boxster
Generation Boxster (987)
Modification (Engine) 2.7 (240 Hp) Tiptronic
Start of production October, 2004 year
End of production August, 2006 year
Powertrain Architecture Internal Combustion engine
Body type Roadster
Seats 2
Doors 2
Performance specs
Fuel consumption (economy) – urban 15.2 l/100 km
15.5 US mpg
18.6 UK mpg
6.6 km/l
Fuel consumption (economy) – extra urban 7.8 l/100 km
30.2 US mpg
36.2 UK mpg
12.8 km/l
Fuel consumption (economy) – combined 10.5 l/100 km
22.4 US mpg
26.9 UK mpg
9.5 km/l
CO2 emissions 250 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 7.1 sec
Acceleration 0 – 62 mph 7.1 sec
Acceleration 0 – 60 mph 6.8 sec
Maximum speed 250 km/h
155.34 mph
Emission standard Euro 4
Weight-to-power ratio 5.6 kg/Hp, 177.1 Hp/tonne
Weight-to-torque ratio 5 kg/Nm, 199.3 Nm/tonne
Engine specs
Power 240 Hp @ 6400 rpm.
Power per litre 89.3 Hp/l
Torque 270 Nm @ 4700-6000 rpm.
199.14 lb.-ft. @ 4700-6000 rpm.
Engine layout Middle, Longitudinal
Engine Model/Code M96.25
Engine displacement 2687 cm3
163.97 cu. in.
Number of cylinders 6
Engine configuration Boxer
Cylinder Bore 85.5 mm
3.37 in.
Piston Stroke 78 mm
3.07 in.
Compression ratio 11:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 7.8 l
8.24 US qt | 6.86 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 22 l
23.25 US qt | 19.36 UK qt

Space, Volume and weights
Kerb Weight 1355 kg
2987.26 lbs.
Max. weight 1655 kg
3648.65 lbs.
Max load 300 kg
661.39 lbs.
Trunk (boot) space – minimum 130 l
4.59 cu. ft.
Fuel tank capacity 64 l
16.91 US gal | 14.08 UK gal
Dimensions
Length 4329 mm
170.43 in.
Width 1801 mm
70.91 in.
Width including mirrors 1978 mm
77.87 in.
Height 1295 mm
50.98 in.
Wheelbase 2415 mm
95.08 in.
Ride height (ground clearance) 101-121 mm
3.98 – 4.76 in.
Drag coefficient (Cd) 0.29
Minimum turning circle (turning diameter) 11.1 m
36.42 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 5 gears, automatic transmission
Front suspension Independent type McPherson
Rear suspension McPherson
Front brakes Ventilated discs, 298×24 mm
Rear brakes Ventilated discs, 299×20 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size Front wheel tires: 205/55 ZR 17
Rear wheel tires: 235/50 ZR 17
Wheel rims size Front wheel rims: 6.5 J x 17
Rear wheel rims: 8 J x 17
