Specifications: Porsche Carrera GT 5.7 i V10 40V (612 Hp) 2003, 2004, 2005, 2006, 2007

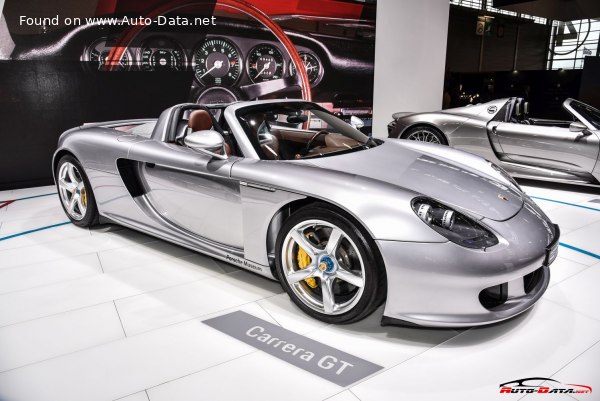

2004 Porsche Carrera GT - Photo 1

Porsche Carrera GT 5.7 i V10 40V (612 Hp) – Full specifications
General information
Brand Porsche
Model Carrera GT
Generation Carrera GT
Modification (Engine) 5.7 i V10 40V (612 Hp)
Start of production 2003 year
End of production 2007 year
Powertrain Architecture Internal Combustion engine
Body type Cabriolet
Seats 2
Doors 2
Performance specs
Fuel consumption (economy) – urban 28.3 l/100 km
8.3 US mpg
10 UK mpg
3.5 km/l
Fuel consumption (economy) – extra urban 11.7 l/100 km
20.1 US mpg
24.1 UK mpg
8.5 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 3.9 sec
Acceleration 0 – 62 mph 3.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 3.7 sec
Maximum speed 330 km/h
205.05 mph
Weight-to-power ratio 2.3 kg/Hp, 443.5 Hp/tonne
Weight-to-torque ratio 2.3 kg/Nm, 427.5 Nm/tonne
Engine specs
Power 612 Hp @ 8000 rpm.
Power per litre 106.8 Hp/l
Torque 590 Nm @ 5750 rpm.
435.16 lb.-ft. @ 5750 rpm.
Engine layout Middle, Longitudinal
Engine Model/Code M80.01
Engine displacement 5733 cm3
349.85 cu. in.
Number of cylinders 10
Engine configuration V-engine
Cylinder Bore 98 mm
3.86 in.
Piston Stroke 76 mm
2.99 in.
Compression ratio 12:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 10.5 l
11.1 US qt | 9.24 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 28 l
29.59 US qt | 24.64 UK qt

Space, Volume and weights
Kerb Weight 1380 kg
3042.38 lbs.
Max. weight 1600 kg
3527.4 lbs.
Max load 220 kg
485.02 lbs.
Trunk (boot) space – maximum 76 l
2.68 cu. ft.
Fuel tank capacity 92 l
24.3 US gal | 20.24 UK gal
Dimensions
Length 4613 mm
181.61 in.
Width 1921 mm
75.63 in.
Height 1166 mm
45.91 in.
Wheelbase 2730 mm
107.48 in.
Front track 1612 mm
63.46 in.
Rear (Back) track 1587 mm
62.48 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Double wishbone
Rear suspension Double wishbone
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Tires size 265/35 R20; 335/30 R20
Wheel rims size 9.5J x 19; 12.5J x 20
