Specifications: Porsche Cayenne III (facelift 2023) Turbo 4.0 V8 (739 Hp) E-Hybrid Tiptronic S 2023, 2024, 2025

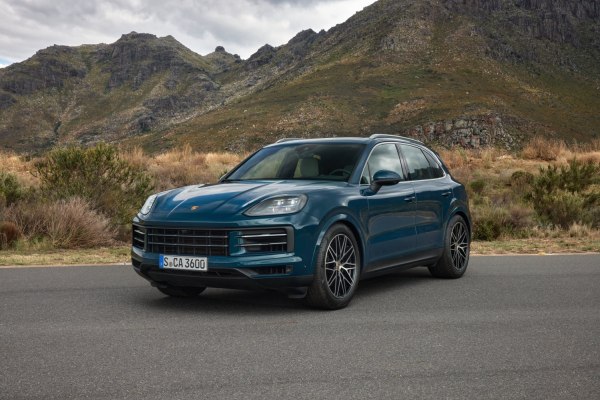

2023 Porsche Cayenne III (facelift 2023) - Photo 1

Porsche Cayenne III (facelift 2023) Turbo 4.0 V8 (739 Hp) E-Hybrid Tiptronic S – Full specifications
General information
Brand Porsche
Model Cayenne
Generation Cayenne III (facelift 2023)
Modification (Engine) Turbo 4.0 V8 (739 Hp) E-Hybrid Tiptronic S
Start of production August, 2023 year
Powertrain Architecture PHEV (Plug-in Hybrid Electric Vehicle)
Body type SUV
Seats 5
Doors 5
Performance specs
Combined fuel consumption (WLTP) 1.7-2 l/100 km
138.4 – 117.6 US mpg
166.2 – 141.2 UK mpg
58.8 – 50 km/l
CO2 emissions (WLTP) 39-45 g/km
Fuel Type Petrol / electricity
Acceleration 0 – 100 km/h 3.7 sec
Acceleration 0 – 62 mph 3.7 sec
Acceleration 0 – 60 mph 3.5 sec
Acceleration 0 – 200 km/h 12.2 sec
Maximum speed 295 km/h
183.3 mph
Emission standard Euro 6d EA
Weight-to-power ratio 3.5 kg/Hp, 287.5 Hp/tonne
Weight-to-torque ratio 2.7 kg/Nm, 369.6 Nm/tonne
Electric cars and hybrids specs
Battery technology Lithium-ion (Li-Ion)
Battery location Under the trunk
All-electric range (WLTP) 70-73 km
43.5 – 45.36 mi
Average Energy consumption (WLTP) 29.9-31.7 kWh/100 km

48.12 – 51.02 kWh/100 mi
70 – 66 MPGe
3.3 – 3.2 km/kWh
2.1 – 2 mi/kWh
Max speed (electric) 135 km/h

83.89 mph
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor power 176 Hp @ 3200 rpm.
Electric motor Torque 460 Nm @ 0-2690 rpm.

339.28 lb.-ft. @ 0-2690 rpm.
Electric motor location Between the combustion engine and the transmission
System power 739 Hp @ 5500-6800 rpm.
System torque 950 Nm @ 900-5130 rpm.
700.68 lb.-ft. @ 900-5130 rpm.
Internal combustion engine specs
Power 599 Hp @ 6000 rpm.
Power per litre 149.9 Hp/l
Torque 800 Nm @ 2400-4500 rpm.
590.05 lb.-ft. @ 2400-4500 rpm.
Maximum engine speed 6800 rpm.
Engine layout Front, Longitudinal
Engine Model/Code EA825
Engine displacement 3996 cm3
243.85 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 86 mm
3.39 in.
Piston Stroke 86 mm
3.39 in.
Compression ratio 9.7:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration BiTurbo, Intercooler
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 2570 kg
5665.88 lbs.
Max. weight 3215 kg
7087.86 lbs.
Max load 645 kg
1421.98 lbs.
Trunk (boot) space – minimum 621 l
21.93 cu. ft.
Trunk (boot) space – maximum 1557 l
54.98 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (12%) 3000 kg
6613.87 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 120 kg
264.55 lbs.
Dimensions
Length 4930 mm
194.09 in.
Width 1983 mm
78.07 in.
Width including mirrors 2194 mm
86.38 in.
Height 1685 mm
66.34 in.
Wheelbase 2895 mm
113.98 in.
Front track 1688 mm
66.46 in.
Rear (Back) track 1668 mm
65.67 in.
Ride height (ground clearance) 198-243 mm
7.8 – 9.57 in.
Drag coefficient (Cd) 0.35
Minimum turning circle (turning diameter) 12.1 m
39.7 ft.
Approach angle 24.2°
Departure angle 21.4°
Ramp-over (brakeover) angle 17.6-21.6°
Wading depth 225-280 mm
8.86 – 11.02 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and the electric motor permanently drive the four wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission Tiptronic S
Front suspension Independent multi-link suspension, Air Suspension – Optional
Rear suspension Independent multi-link suspension, Air Suspension – Optional
Front brakes Ventilated discs, 420×40 mm
Rear brakes Ventilated discs, 365×28 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size Front wheel tires: 285/45 ZR21Y
Rear wheel tires: 315/40 ZR21Y
Wheel rims size Front wheel rims: 9; 5 J x 21
Rear wheel rims: 11 J x 21
