Specifications: Toyota 4Runner IV 4.0i V6 24V (245 Hp) Automatic 2002, 2003, 2004, 2005

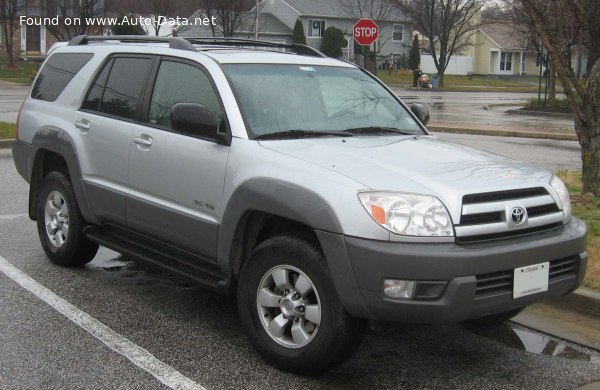

2003 Toyota 4Runner IV - Photo 1

Toyota 4Runner IV 4.0i V6 24V (245 Hp) Automatic – Full specifications
General information
Brand Toyota
Model 4Runner
Generation 4Runner IV
Modification (Engine) 4.0i V6 24V (245 Hp) Automatic
Start of production 2002 year
End of production 2005 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 13 l/100 km
18.09 US mpg
21.73 UK mpg
7.69 km/l
Fuel consumption (economy) – extra urban 11.2 l/100 km
21 US mpg
25.22 UK mpg
8.93 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 7.8 sec
Acceleration 0 – 62 mph 7.8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.4 sec
Maximum speed 188 km/h
116.82 mph
Weight-to-power ratio 7.4 kg/Hp, 134.2 Hp/tonne
Weight-to-torque ratio 4.8 kg/Nm, 209.3 Nm/tonne
Engine specs
Power 245 Hp @ 5200 rpm.
Power per litre 61.9 Hp/l
Torque 382 Nm @ 3800 rpm.
281.75 lb.-ft. @ 3800 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 1GR-FE
Engine displacement 3955 cm3
241.35 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 94 mm
3.7 in.
Piston Stroke 95 mm
3.74 in.
Compression ratio 10:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 5.2 l
5.49 US qt | 4.58 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9.8 l
10.36 US qt | 8.62 UK qt

Space, Volume and weights
Kerb Weight 1825 kg
4023.44 lbs.
Max. weight 2322 kg
5119.13 lbs.
Max load 497 kg
1095.7 lbs.
Trunk (boot) space – minimum 1195 l
42.2 cu. ft.
Trunk (boot) space – maximum 2050 l
72.4 cu. ft.
Fuel tank capacity 87 l
22.98 US gal | 19.14 UK gal
Permitted trailer load with brakes (12%) 2268 kg
5000.08 lbs.
Dimensions
Length 4800 mm
188.98 in.
Width 1875 mm
73.82 in.
Height 1755 mm
69.09 in.
Wheelbase 2790 mm
109.84 in.
Front track 1575 mm
62.01 in.
Rear (Back) track 1575 mm
62.01 in.
Ride height (ground clearance) 226 mm
8.9 in.
Minimum turning circle (turning diameter) 11.1 m
36.42 ft.
Approach angle 31°
Departure angle 24°
Ramp-over (brakeover) angle 22°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Double wishbone
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 265/70 R16; 265/65 R17
Wheel rims size 7.0J x 16; 7.5J x 17
