Specifications: Toyota 4Runner VI TRD Pro 2.4 i-FORCE MAX (326 Hp) Hybrid 4WD ECT-i 2024, 2025

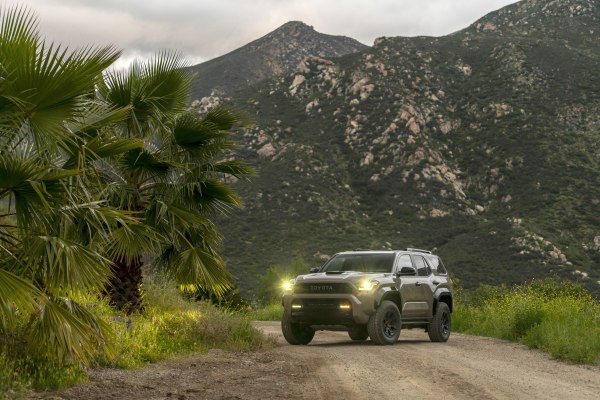

2025 Toyota 4Runner VI - Photo 1

Toyota 4Runner VI TRD Pro 2.4 i-FORCE MAX (326 Hp) Hybrid 4WD ECT-i – Full specifications
General information
Brand Toyota
Model 4Runner
Generation 4Runner VI
Modification (Engine) TRD Pro 2.4 i-FORCE MAX (326 Hp) Hybrid 4WD ECT-i
Start of production December, 2024 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban (EPA) 10.2 l/100 km
23.06 US mpg
27.69 UK mpg
9.8 km/l
Fuel consumption (economy) – extra urban (EPA) 9.8 l/100 km
24 US mpg
28.82 UK mpg
10.2 km/l
Fuel consumption (economy) – combined (EPA) 10.2 l/100 km
23.06 US mpg
27.69 UK mpg
9.8 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 7.6 kg/Hp, 131.8 Hp/tonne
Weight-to-torque ratio 3.9 kg/Nm, 254.6 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 1.87 kWh
Battery voltage 288 V
Battery technology Nickel-metal hydride (NiMH)
Battery location Under the trunk
Electric motor 1
Electric motor power 48 Hp
Electric motor Torque 250 Nm

184.39 lb.-ft.
Electric motor type Synchronous
System power 326 Hp @ 6000 rpm.
System torque 630 Nm @ 1700 rpm.
464.66 lb.-ft. @ 1700 rpm.
Internal combustion engine specs
Power 278 Hp @ 6000 rpm.
Power per litre 116.2 Hp/l
Torque 430 Nm @ 1700 rpm.
317.15 lb.-ft. @ 1700 rpm.
Engine layout Front, Longitudinal
Engine Model/Code Dynamic Force / T24A-FTS
Engine displacement 2393 cm3
146.03 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 87.5 mm
3.44 in.
Piston Stroke 99.5 mm
3.92 in.
Compression ratio 11:1
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Twin-scroll turbo, Intercooler
Valvetrain DOHC, Dual VVT-i
Engine oil capacity 5.6 l
5.92 US qt | 4.93 UK qt

Space, Volume and weights
Kerb Weight 2474 kg
5454.24 lbs.
Max. weight 2951 kg
6505.84 lbs.
Max load 477 kg
1051.6 lbs.
Trunk (boot) space – minimum 1206 l
42.59 cu. ft.
Trunk (boot) space – maximum 2339 l
82.6 cu. ft.
Fuel tank capacity 72 l
19.02 US gal | 15.84 UK gal
Permitted trailer load with brakes (12%) 2631 kg
5800.36 lbs.
Dimensions
Length 4950 mm
194.88 in.
Width 2029 mm
79.88 in.
Height 1880 mm
74.02 in.
Wheelbase 2850 mm
112.2 in.
Front track 1748 mm
68.82 in.
Rear (Back) track 1748 mm
68.82 in.
Ride height (ground clearance) 257 mm
10.12 in.
Minimum turning circle (turning diameter) 12 m
39.37 ft.
Approach angle 33°
Departure angle 24°
Ramp-over (brakeover) angle 24°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and the electric motor permanently drive the rear wheels of the vehicle, capable of running in full electric or mixed mode, and if necessary through the electrically or mechanically controlled clutch, the front wheels are driven.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission ECT-i
Front suspension Coil spring, Double wishbone, Transverse stabilizer
Rear suspension Rigid axle suspension, Transverse stabilizer, Coil spring
Front brakes Ventilated discs, 340 mm
Rear brakes Ventilated discs, 335 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 265/70 R18
Wheel rims size 18
