Specifications: Toyota Allex 1.8 i (190 Hp) 2001, 2002, 2003, 2004, 2005, 2006

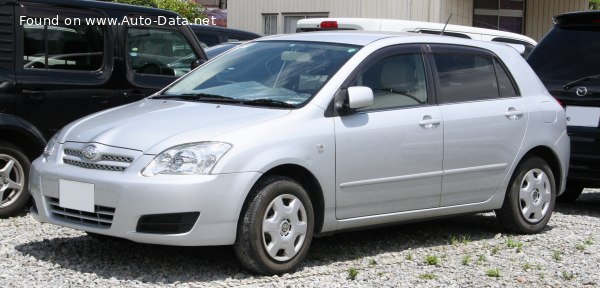

2001 Toyota Allex - Photo 1

Toyota Allex 1.8 i (190 Hp) – Full specifications
General information
Brand Toyota
Model Allex
Generation Allex
Modification (Engine) 1.8 i (190 Hp)
Start of production 2001 year
End of production 2006 year
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 6 kg/Hp, 166.7 Hp/tonne
Weight-to-torque ratio 6.3 kg/Nm, 157.9 Nm/tonne
Engine specs
Power 190 Hp @ 7600 rpm.
Power per litre 105.8 Hp/l
Torque 180 Nm @ 6800 rpm.
132.76 lb.-ft. @ 6800 rpm.
Engine layout Front, Transverse
Engine Model/Code 2ZZ-GE
Engine displacement 1795 cm3
109.54 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82 mm
3.23 in.
Piston Stroke 85 mm
3.35 in.
Compression ratio 11.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, VVTL-i
Engine oil capacity 3.7 l
3.91 US qt | 3.26 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.5 l
6.87 US qt | 5.72 UK qt

Space, Volume and weights
Kerb Weight 1140-1150 kg
2513.27 – 2535.32 lbs.
Max. weight 1425 kg
3141.59 lbs.
Max load 275-285 kg
606.27 – 628.32 lbs.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Dimensions
Length 4175 mm
164.37 in.
Width 1695 mm
66.73 in.
Height 1470 mm
57.87 in.
Wheelbase 2600 mm
102.36 in.
Front track 1480 mm
58.27 in.
Rear (Back) track 1460 mm
57.48 in.
Ride height (ground clearance) 160 mm
6.3 in.
Minimum turning circle (turning diameter) 10.2 m
33.46 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Coil spring, Torsion
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 175/70 R14
Wheel rims size 5.5J x 14
