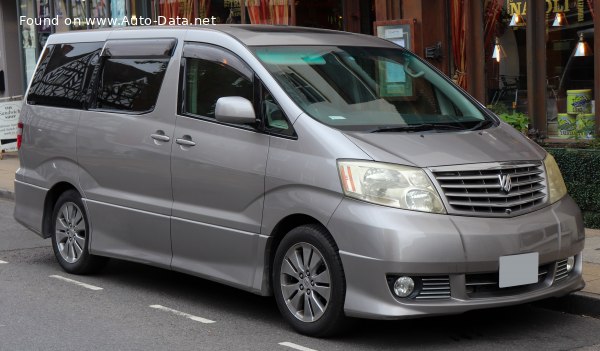

Specifications: Toyota Alphard I 2.4 i (160 Hp) 2002, 2003, 2004, 2005

Toyota Alphard I 2.4 i (160 Hp) – Full specifications
General information
Brand	Toyota
Model	Alphard
Generation	Alphard I
Modification (Engine)	2.4 i (160 Hp)
Start of production	2002 year
End of production	2005 year
Powertrain Architecture	Internal Combustion engine
Body type	Minivan
Seats	7
Doors	5
Performance specs
Fuel Type	Petrol (Gasoline)
Engine specs
Power	160 Hp @ 5600 rpm.
Power per litre	67.7 Hp/l
Torque	221 Nm @ 4000 rpm. 163 lb.-ft. @ 4000 rpm.
Engine layout	Front, Transverse
Engine Model/Code	2AZ-FE
Engine displacement	2364 cm³ 144.26 cu. in.
Number of cylinders	4
Engine configuration	Inline
Cylinder Bore	88.5 mm 3.48 in.
Piston Stroke	96 mm 3.78 in.
Compression ratio	9.6:1
Number of valves per cylinder	4
Fuel injection system	Multi-port manifold injection
Engine aspiration	Naturally aspirated engine
Valvetrain	DOHC
Engine oil capacity	4.3 l 4.54 US qt \| 3.78 UK qt
Engine oil specification	Log in to see.
Coolant	8 l 8.45 US qt \| 7.04 UK qt

Space, Volume and weights
Fuel tank capacity	70 l 18.49 US gal \| 15.4 UK gal
Dimensions
Length	4845 mm 190.75 in.
Width	1830 mm 72.05 in.
Height	1935 mm 76.18 in.
Wheelbase	2900 mm 114.17 in.
Front track	1560 mm 61.42 in.
Rear (Back) track	1540 mm 60.63 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture	The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel	Front wheel drive
Number of gears and type of gearbox	4 gears, automatic transmission
Front suspension	Spring Strut
Rear suspension	Coil spring
Front brakes	Ventilated discs
Rear brakes	Disc
Tires size	225/55 R17
