Specifications: Toyota Alphard III 3.5 V6 (300 Hp) Automatic 2015, 2016, 2017, 2018

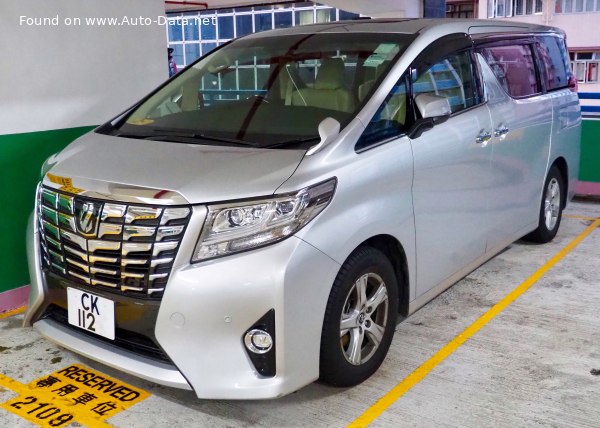

2015 Toyota Alphard III - Photo 1

Toyota Alphard III 3.5 V6 (300 Hp) Automatic – Full specifications
General information
Brand Toyota
Model Alphard
Generation Alphard III
Modification (Engine) 3.5 V6 (300 Hp) Automatic
Start of production 2015 year
End of production 2018 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 7
Doors 5
Performance specs
Fuel Type Petrol (Gasoline)
Engine specs
Power 300 Hp @ 6200 rpm.
Power per litre 86.8 Hp/l
Torque 361 Nm
266.26 lb.-ft.
Engine Model/Code 2GR-FKS
Engine displacement 3456 cm3
210.9 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 94 mm
3.7 in.
Piston Stroke 83 mm
3.27 in.
Compression ratio 11.8:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, VVT-i
Engine oil capacity 5.4 l
5.71 US qt | 4.75 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 10.7 l
11.31 US qt | 9.41 UK qt

Space, Volume and weights
Fuel tank capacity 75 l
19.81 US gal | 16.5 UK gal
Dimensions
Length 4945 mm
194.69 in.
Width 1850 mm
72.83 in.
Height 1895 mm
74.61 in.
Wheelbase 3000 mm
118.11 in.
Front track 1575 mm
62.01 in.
Rear (Back) track 1600 mm
62.99 in.
Ride height (ground clearance) 160 mm
6.3 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 8 gears, automatic transmission
Front suspension Independent type McPherson, Transverse stabilizer
Rear suspension Double wishbone, Transverse stabilizer
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/50 R18
