Specifications: Toyota Aqua II 1.5L (116 Hp) Hybrid e-CVT 2021, 2022, 2023, 2024, 2025

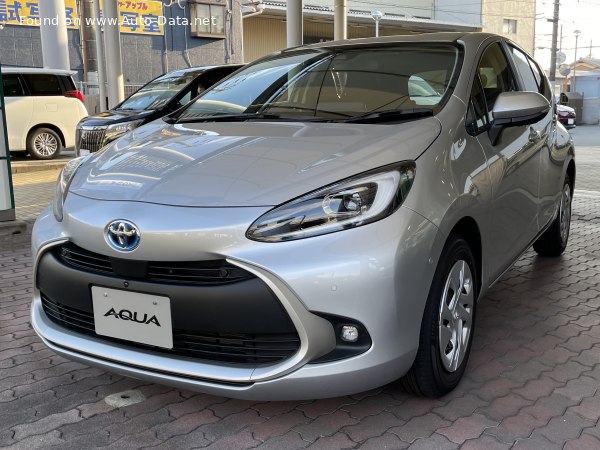

2022 Toyota Aqua II - Photo 1

Toyota Aqua II 1.5L (116 Hp) Hybrid e-CVT – Full specifications
General information
Brand Toyota
Model Aqua
Generation Aqua II
Modification (Engine) 1.5L (116 Hp) Hybrid e-CVT
Start of production July, 2021 year
End of production September, 2025 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 2.73-2.95 l/100 km
86.16 – 79.73 US mpg
103.47 – 95.76 UK mpg
36.63 – 33.9 km/l
Fuel consumption (economy) – extra urban 2.53-2.77 l/100 km
92.97 – 84.92 US mpg
111.65 – 101.98 UK mpg
39.53 – 36.1 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 9.3 kg/Hp, 107.4 Hp/tonne
Weight-to-torque ratio 9 kg/Nm, 111.1 Nm/tonne
Electric cars and hybrids specs
Battery technology Nickel-metal hydride (NiMH)
Electric motor 1
Electric motor power 80 Hp
Electric motor Torque 141 Nm

104 lb.-ft.
Electric motor model/code 1NM
Electric motor location Integrated into the transmission
Electric motor type Synchronous
System power 116 Hp
Internal combustion engine specs
Power 91 Hp @ 5500 rpm.
Power per litre 61.1 Hp/l
Torque 120 Nm @ 3800-4800 rpm.
88.51 lb.-ft. @ 3800-4800 rpm.
Engine layout Front, Transverse
Engine Model/Code M15A-FXE
Engine displacement 1490 cm3
90.93 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 80.5 mm
3.17 in.
Piston Stroke 97.6 mm
3.84 in.
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1080-1130 kg
2380.99 – 2491.22 lbs.
Max. weight 1405 kg
3097.49 lbs.
Max load 275-325 kg
606.27 – 716.5 lbs.
Fuel tank capacity 36 l
9.51 US gal | 7.92 UK gal
Dimensions
Length 4050 mm
159.45 in.
Width 1695 mm
66.73 in.
Height 1485 mm
58.46 in.
Wheelbase 2600 mm
102.36 in.
Front track 1480-1490 mm
58.27 – 58.66 in.
Rear (Back) track 1475-1485 mm
58.07 – 58.46 in.
Ride height (ground clearance) 140 mm
5.51 in.
Minimum turning circle (turning diameter) 10.4 m
34.12 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox automatic transmission e-CVT
Front suspension Independent type McPherson
Rear suspension Torsion
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 175/70 R14; 185/65 R15; 195/55 R16
Wheel rims size 5.5J x 14; 6J x 15; 6J x 16
