Specifications: Toyota Aurion II (XV50, facelift 2014) 3.5 V6 (272 Hp) Automatic 2014, 2015, 2016, 2017

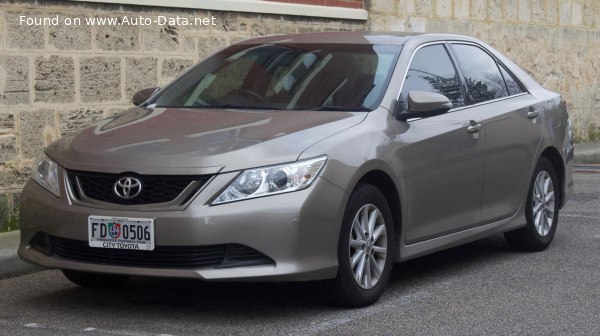

2014 Toyota Aurion II (XV50, facelift 2014) - Photo 1

Toyota Aurion II (XV50, facelift 2014) 3.5 V6 (272 Hp) Automatic – Full specifications
General information
Brand Toyota
Model Aurion
Generation Aurion II (XV50, facelift 2014)
Modification (Engine) 3.5 V6 (272 Hp) Automatic
Start of production 2014 year
End of production August, 2017 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – combined 9.3 l/100 km
25.29 US mpg
30.37 UK mpg
10.75 km/l
CO2 emissions 215 g/km
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 5.5 kg/Hp, 180.7 Hp/tonne
Weight-to-torque ratio 4.5 kg/Nm, 223.3 Nm/tonne
Engine specs
Power 272 Hp @ 6200 rpm.
Power per litre 78.7 Hp/l
Torque 336 Nm @ 4700 rpm.
247.82 lb.-ft. @ 4700 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 2GR-FE
Engine displacement 3456 cm3
210.9 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 94 mm
3.7 in.
Piston Stroke 83 mm
3.27 in.
Compression ratio 10.8:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, VVT-i
Engine oil capacity 6.1 l
6.45 US qt | 5.37 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9.4 l
9.93 US qt | 8.27 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1505-1555 kg
3317.96 – 3428.19 lbs.
Max. weight 2100 kg
4629.71 lbs.
Max load 545-595 kg
1201.52 – 1311.75 lbs.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Permitted trailer load with brakes (12%) 1600 kg
3527.4 lbs.
Permitted trailer load without brakes 500 kg
1102.31 lbs.
Dimensions
Length 4835 mm
190.35 in.
Width 1825 mm
71.85 in.
Height 1470 mm
57.87 in.
Wheelbase 2775 mm
109.25 in.
Minimum turning circle (turning diameter) 11-11.4 m
36.09 – 37.4 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Independent type McPherson, Transverse stabilizer
Rear suspension Independent multi-link suspension, Transverse stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 215/60 R16; 215/55 R17; 225/45 R18
Wheel rims size 16; 17; 18
