Specifications: Toyota Auris (facelift 2010) 1.33 VVT-i (99 Hp) 2010, 2011, 2012

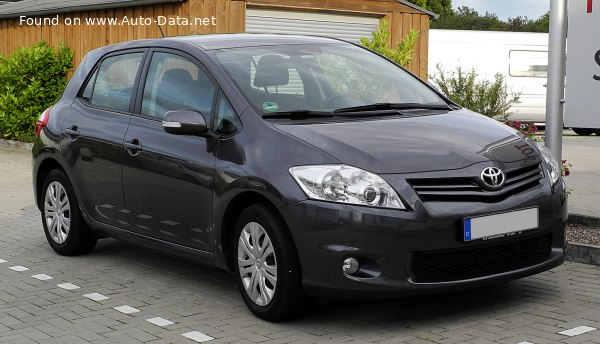

2010 Toyota Auris (facelift 2010) - Photo 1

Toyota Auris (facelift 2010) 1.33 VVT-i (99 Hp) – Full specifications
General information
Brand Toyota
Model Auris
Generation Auris (facelift 2010)
Modification (Engine) 1.33 VVT-i (99 Hp)
Start of production 2010 year
End of production 2012 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 7.2 l/100 km
32.67 US mpg
39.23 UK mpg
13.89 km/l
Fuel consumption (economy) – extra urban 5.1 l/100 km
46.12 US mpg
55.39 UK mpg
19.61 km/l
Fuel consumption (economy) – combined 5.9 l/100 km
39.87 US mpg
47.88 UK mpg
16.95 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 13.1 sec
Acceleration 0 – 62 mph 13.1 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 12.4 sec
Maximum speed 175 km/h
108.74 mph
Emission standard Euro 5
Weight-to-power ratio 12.3 kg/Hp, 81.1 Hp/tonne
Weight-to-torque ratio 9.2 kg/Nm, 108.2 Nm/tonne
Engine specs
Power 99 Hp @ 6000 rpm.
Power per litre 74.5 Hp/l
Torque 132 Nm @ 3800 rpm.
97.36 lb.-ft. @ 3800 rpm.
Engine layout Front, Transverse
Engine Model/Code 1NR-FE
Engine displacement 1329 cm3
81.1 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 72.5 mm
2.85 in.
Piston Stroke 80.5 mm
3.17 in.
Compression ratio 11.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 3.4 l
3.59 US qt | 2.99 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 4.7 l
4.97 US qt | 4.14 UK qt

Space, Volume and weights
Kerb Weight 1220 kg
2689.64 lbs.
Max. weight 1720 kg
3791.95 lbs.
Max load 500 kg
1102.31 lbs.
Trunk (boot) space – minimum 350 l
12.36 cu. ft.
Trunk (boot) space – maximum 777 l
27.44 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Dimensions
Length 4245 mm
167.13 in.
Width 1760 mm
69.29 in.
Height 1515 mm
59.65 in.
Wheelbase 2600 mm
102.36 in.
Front track 1525 mm
60.04 in.
Rear (Back) track 1525 mm
60.04 in.
Minimum turning circle (turning diameter) 10.4 m
34.12 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Torsion
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 195/65 R15
Wheel rims size 15
