Specifications: Toyota Auris I 2.0 D-4D (126 Hp) 2006, 2007, 2008, 2009, 2010

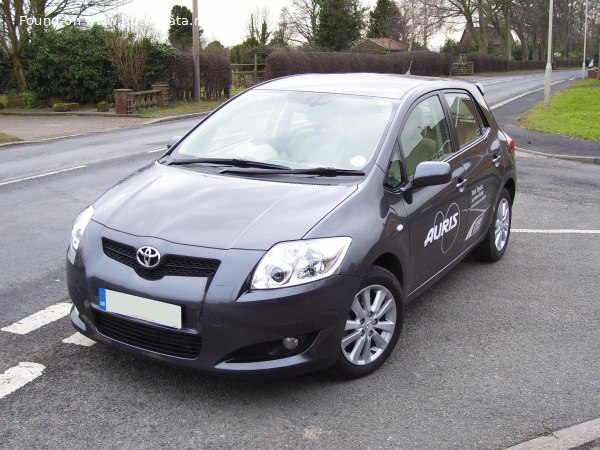

2007 Toyota Auris I - Photo 1

Toyota Auris I 2.0 D-4D (126 Hp) – Full specifications
General information
Brand Toyota
Model Auris
Generation Auris I
Modification (Engine) 2.0 D-4D (126 Hp)
Start of production 2006 year
End of production 2010 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 5.8 l/100 km
40.55 US mpg
48.7 UK mpg
17.24 km/l
Fuel consumption (economy) – extra urban 4.5 l/100 km
52.27 US mpg
62.77 UK mpg
22.22 km/l
Fuel consumption (economy) – combined 5 l/100 km
47.04 US mpg
56.5 UK mpg
20 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 10.3 sec
Acceleration 0 – 62 mph 10.3 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.8 sec
Maximum speed 195 km/h
121.17 mph
Emission standard Euro 4
Weight-to-power ratio 10 kg/Hp, 100 Hp/tonne
Weight-to-torque ratio 4.2 kg/Nm, 238.1 Nm/tonne
Engine specs
Power 126 Hp @ 3600 rpm.
Power per litre 63.1 Hp/l
Torque 300 Nm @ 1800-2400 rpm.
221.27 lb.-ft. @ 1800-2400 rpm.
Engine layout Front, Transverse
Engine Model/Code 1AD-FTV
Engine displacement 1998 cm3
121.93 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 86 mm
3.39 in.
Piston Stroke 86 mm
3.39 in.
Compression ratio 16.8:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 6.3 l
6.66 US qt | 5.54 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.4 l
7.82 US qt | 6.51 UK qt

Space, Volume and weights
Kerb Weight 1260 kg
2777.82 lbs.
Max. weight 1760 kg
3880.14 lbs.
Max load 500 kg
1102.31 lbs.
Trunk (boot) space – minimum 354 l
12.5 cu. ft.
Trunk (boot) space – maximum 761 l
26.87 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Dimensions
Length 4220 mm
166.14 in.
Width 1760 mm
69.29 in.
Height 1515 mm
59.65 in.
Wheelbase 2600 mm
102.36 in.
Front track 1524 mm
60 in.
Rear (Back) track 1522 mm
59.92 in.
Minimum turning circle (turning diameter) 10.2 m
33.46 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Spring Strut
Rear suspension Torsion
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 195/65 R15
