Specifications: Toyota Auris II (facelift 2015) 1.4 D-4D (90 Hp) 2015, 2016, 2017, 2018

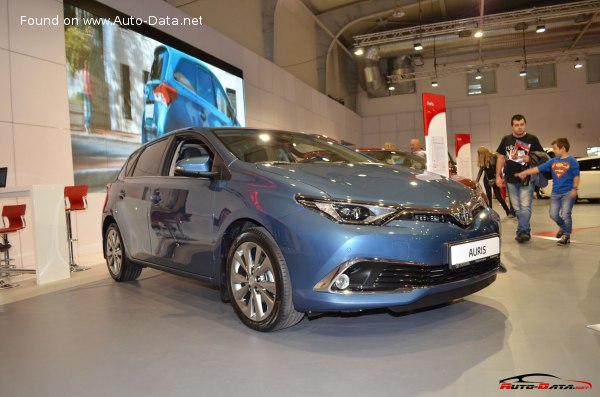

2015 Toyota Auris II (facelift 2015) - Photo 1

Toyota Auris II (facelift 2015) 1.4 D-4D (90 Hp) – Full specifications
General information
Brand Toyota
Model Auris
Generation Auris II (facelift 2015)
Modification (Engine) 1.4 D-4D (90 Hp)
Start of production 2015 year
End of production 2018 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 4.6 l/100 km
51.13 US mpg
61.41 UK mpg
21.74 km/l
Fuel consumption (economy) – extra urban 3.6 l/100 km
65.34 US mpg
78.47 UK mpg
27.78 km/l
Fuel consumption (economy) – combined 4 l/100 km
58.8 US mpg
70.62 UK mpg
25 km/l
CO2 emissions 105 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 12.5 sec
Acceleration 0 – 62 mph 12.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11.9 sec
Maximum speed 180 km/h
111.85 mph
Emission standard Euro 6 W
Weight-to-power ratio 14.2 kg/Hp, 70.6 Hp/tonne
Weight-to-torque ratio 6.2 kg/Nm, 160.8 Nm/tonne
Engine specs
Power 90 Hp @ 3800 rpm.
Power per litre 66 Hp/l
Torque 205 Nm @ 1400-2800 rpm.
151.2 lb.-ft. @ 1400-2800 rpm.
Engine layout Front, Transverse
Engine Model/Code 1ND-TV
Engine displacement 1364 cm3
83.24 cu. in.
Number of cylinders 4
Engine configuration Inline
Compression ratio 16.5:1
Number of valves per cylinder 2
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain SOHC
Engine oil capacity 3.7 l
3.91 US qt | 3.26 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6 l
6.34 US qt | 5.28 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1275-1415 kg
2810.89 – 3119.54 lbs.
Max. weight 1815 kg
4001.39 lbs.
Max load 400-540 kg
881.85 – 1190.5 lbs.
Trunk (boot) space – minimum 360 l
12.71 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (12%) 1000 kg
2204.62 lbs.
Permitted trailer load without brakes 450 kg
992.08 lbs.
Permitted towbar download 55 kg
121.25 lbs.
Dimensions
Length 4330 mm
170.47 in.
Width 1760 mm
69.29 in.
Height 1475 mm
58.07 in.
Wheelbase 2600 mm
102.36 in.
Front track 1525 mm
60.04 in.
Rear (Back) track 1525 mm
60.04 in.
Minimum turning circle (turning diameter) 11.0 m
36.09 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Semi-independent, coil spring
Front brakes Disc
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/55 R16
Wheel rims size 6.5J x 16
