Specifications: Toyota Auris II Touring Sports 1.4 D-4D (90 Hp) 2012, 2013, 2014, 2015

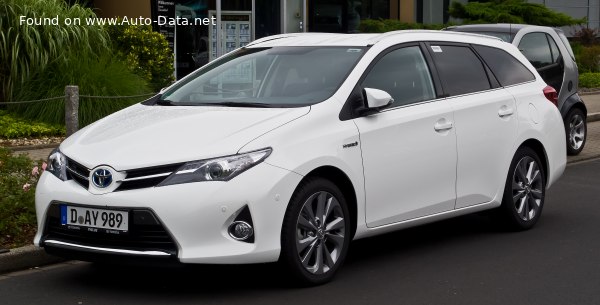

2013 Toyota Auris II Touring Sports - Photo 1

Toyota Auris II Touring Sports 1.4 D-4D (90 Hp) – Full specifications
General information
Brand Toyota
Model Auris
Generation Auris II Touring Sports
Modification (Engine) 1.4 D-4D (90 Hp)
Start of production 2012 year
End of production 2015 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 5.2 l/100 km
45.23 US mpg
54.32 UK mpg
19.23 km/l
Fuel consumption (economy) – extra urban 3.8 l/100 km
61.9 US mpg
74.34 UK mpg
26.32 km/l
Fuel consumption (economy) – combined 4.3 l/100 km
54.7 US mpg
65.69 UK mpg
23.26 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 13 sec
Acceleration 0 – 62 mph 13 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 12.4 sec
Maximum speed 175 km/h
108.74 mph
Emission standard Euro 5 J
Weight-to-power ratio 13.6 kg/Hp, 73.8 Hp/tonne
Weight-to-torque ratio 6 kg/Nm, 168 Nm/tonne
Engine specs
Power 90 Hp @ 3800 rpm.
Power per litre 66 Hp/l
Torque 205 Nm @ 1800-2800 rpm.
151.2 lb.-ft. @ 1800-2800 rpm.
Engine layout Front, Transverse
Engine Model/Code 1ND-TV
Engine displacement 1364 cm3
83.24 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 73 mm
2.87 in.
Piston Stroke 81.5 mm
3.21 in.
Compression ratio 16.5:1
Number of valves per cylinder 2
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain SOHC
Engine oil capacity 3.7 l
3.91 US qt | 3.26 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6 l
6.34 US qt | 5.28 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1220 kg
2689.64 lbs.
Max. weight 1845 kg
4067.53 lbs.
Max load 625 kg
1377.89 lbs.
Trunk (boot) space – minimum 530 l
18.72 cu. ft.
Trunk (boot) space – maximum 1658 l
58.55 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Dimensions
Length 4560 mm
179.53 in.
Width 1760 mm
69.29 in.
Height 1460 mm
57.48 in.
Wheelbase 2600 mm
102.36 in.
Front track 1535 mm
60.43 in.
Rear (Back) track 1535 mm
60.43 in.
Minimum turning circle (turning diameter) 10.4 m
34.12 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Torsion
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
