Specifications: Toyota Avalon III (facelift 2007) 3.5 V6 (268 Hp) ECT-i 2007, 2008, 2009, 2010

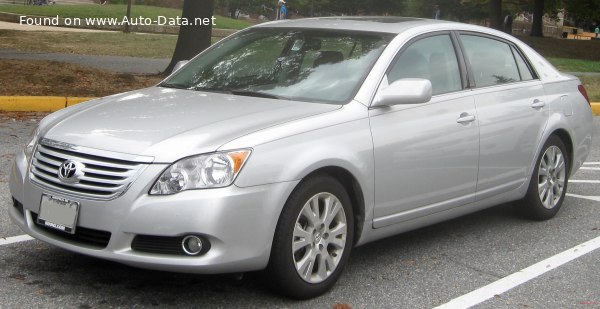

2008 Toyota Avalon III (facelift 2007) - Photo 1

Toyota Avalon III (facelift 2007) 3.5 V6 (268 Hp) ECT-i – Full specifications
General information
Brand Toyota
Model Avalon
Generation Avalon III (facelift 2007)
Modification (Engine) 3.5 V6 (268 Hp) ECT-i
Start of production 2007 year
End of production 2010 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 12.4 l/100 km
18.97 US mpg
22.78 UK mpg
8.06 km/l
Fuel consumption (economy) – extra urban 8.4 l/100 km
28 US mpg
33.63 UK mpg
11.9 km/l
Fuel Type Petrol (Gasoline)
Emission standard ULEV
Weight-to-power ratio 5.9 kg/Hp, 169.3 Hp/tonne
Weight-to-torque ratio 4.7 kg/Nm, 212.3 Nm/tonne
Engine specs
Power 268 Hp @ 6200 rpm.
Power per litre 77.5 Hp/l
Torque 336 Nm @ 4700 rpm.
247.82 lb.-ft. @ 4700 rpm.
Engine layout Front, Transverse
Engine Model/Code 2GR-FE
Engine displacement 3456 cm3
210.9 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 93.98 mm
3.7 in.
Piston Stroke 83.06 mm
3.27 in.
Compression ratio 10.8:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, Dual VVT-i
Engine oil capacity 6.2 l
6.55 US qt | 5.46 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8.3 l
8.77 US qt | 7.3 UK qt

Space, Volume and weights
Kerb Weight 1583-1637 kg
3489.92 – 3608.97 lbs.
Trunk (boot) space – minimum 408 l
14.41 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Dimensions
Length 5019 mm
197.6 in.
Width 1849 mm
72.8 in.
Height 1486 mm
58.5 in.
Wheelbase 2819 mm
110.98 in.
Front track 1580 mm
62.2 in.
Rear (Back) track 1565 mm
61.61 in.
Ride height (ground clearance) 135 mm
5.31 in.
Drag coefficient (Cd) 0.29
Minimum turning circle (turning diameter) 11.2 m
36.75 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission ECT-i
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension McPherson, Transverse stabilizer
Front brakes Ventilated discs, 297.18 mm
Rear brakes Disc, 281.94 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 215/60 R16; 215/55 R17
Wheel rims size 6.5J x 16; 7J x 17
