Specifications: Toyota Avensis II Wagon 1.8 VVT-i (129 Hp) 2003, 2004, 2005, 2006, 2007, 2008, 2009

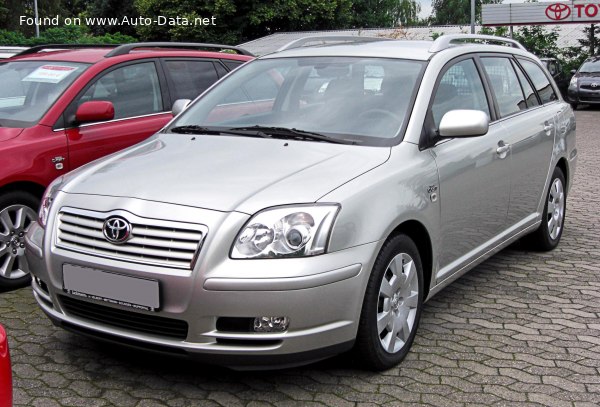

2003 Toyota Avensis II Wagon - Photo 1

Toyota Avensis II Wagon 1.8 VVT-i (129 Hp) – Full specifications
General information
Brand Toyota
Model Avensis
Generation Avensis II Wagon
Modification (Engine) 1.8 VVT-i (129 Hp)
Start of production 2003 year
End of production 2009 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 9.4 l/100 km
25.02 US mpg
30.05 UK mpg
10.64 km/l
Fuel consumption (economy) – extra urban 5.8 l/100 km
40.55 US mpg
48.7 UK mpg
17.24 km/l
Fuel consumption (economy) – combined 7.2 l/100 km
32.67 US mpg
39.23 UK mpg
13.89 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 10.5 sec
Acceleration 0 – 62 mph 10.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10 sec
Maximum speed 195 km/h
121.17 mph
Weight-to-power ratio 10 kg/Hp, 99.6 Hp/tonne
Weight-to-torque ratio 7.6 kg/Nm, 131.3 Nm/tonne
Engine specs
Power 129 Hp @ 6000 rpm.
Power per litre 71.9 Hp/l
Torque 170 Nm @ 4200 rpm.
125.39 lb.-ft. @ 4200 rpm.
Engine layout Front, Transverse
Engine Model/Code 1ZZ-FE
Engine displacement 1794 cm3
109.48 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 79 mm
3.11 in.
Piston Stroke 91.5 mm
3.6 in.
Compression ratio 10:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 3.7 l
3.91 US qt | 3.26 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.7 l
6.02 US qt | 5.02 UK qt

Space, Volume and weights
Kerb Weight 1295 kg
2854.99 lbs.
Max. weight 1820 kg
4012.41 lbs.
Max load 525 kg
1157.43 lbs.
Trunk (boot) space – minimum 520 l
18.36 cu. ft.
Trunk (boot) space – maximum 1500 l
52.97 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Dimensions
Length 4700 mm
185.04 in.
Width 1760 mm
69.29 in.
Height 1525 mm
60.04 in.
Wheelbase 2700 mm
106.3 in.
Front track 1505 mm
59.25 in.
Rear (Back) track 1510 mm
59.45 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Coil spring
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 205/55 R16
Wheel rims size 16
