Specifications: Toyota Avensis III Wagon 1.6i (132 Hp) 2009, 2010, 2011

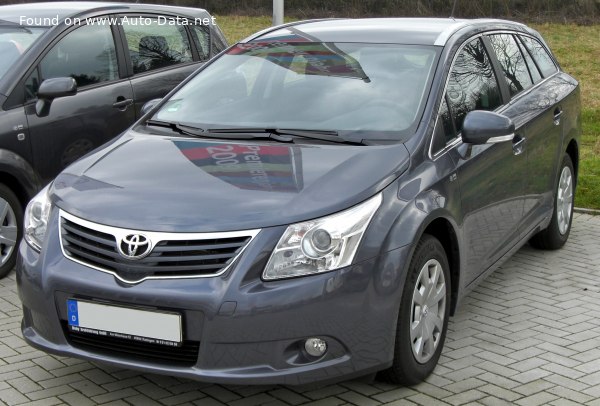

2009 Toyota Avensis III Wagon - Photo 1

Toyota Avensis III Wagon 1.6i (132 Hp) – Full specifications
General information
Brand Toyota
Model Avensis
Generation Avensis III Wagon
Modification (Engine) 1.6i (132 Hp)
Start of production 2009 year
End of production 2011 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 8.4 l/100 km
28 US mpg
33.63 UK mpg
11.9 km/l
Fuel consumption (economy) – extra urban 5.4 l/100 km
43.56 US mpg
52.31 UK mpg
18.52 km/l
Fuel consumption (economy) – combined 6.5 l/100 km
36.19 US mpg
43.46 UK mpg
15.38 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 10.6 sec
Acceleration 0 – 62 mph 10.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.1 sec
Maximum speed 195 km/h
121.17 mph
Emission standard Euro 5
Weight-to-power ratio 10.6 kg/Hp, 94.3 Hp/tonne
Weight-to-torque ratio 8.8 kg/Nm, 114.3 Nm/tonne
Engine specs
Power 132 Hp @ 6400 rpm.
Power per litre 82.6 Hp/l
Torque 160 Nm @ 4400 rpm.
118.01 lb.-ft. @ 4400 rpm.
Engine layout Front, Transverse
Engine Model/Code 1ZR-FAE
Engine displacement 1598 cm3
97.52 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 80.5 mm
3.17 in.
Piston Stroke 78.5 mm
3.09 in.
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 4.2 l
4.44 US qt | 3.7 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.3 l
6.66 US qt | 5.54 UK qt

Space, Volume and weights
Kerb Weight 1400 kg
3086.47 lbs.
Max. weight 1950 kg
4299.01 lbs.
Max load 550 kg
1212.54 lbs.
Trunk (boot) space – minimum 543 l
19.18 cu. ft.
Trunk (boot) space – maximum 1609 l
56.82 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Dimensions
Length 4765 mm
187.6 in.
Width 1810 mm
71.26 in.
Height 1480 mm
58.27 in.
Wheelbase 2700 mm
106.3 in.
Front track 1550 mm
61.02 in.
Rear (Back) track 1540 mm
60.63 in.
Minimum turning circle (turning diameter) 10.8 m
35.43 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Double wishbone
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/60R16
