Specifications: Toyota Avensis III Wagon (facelift 2012) 2.0 Valvematic (152 Hp) 2012, 2013, 2014, 2015

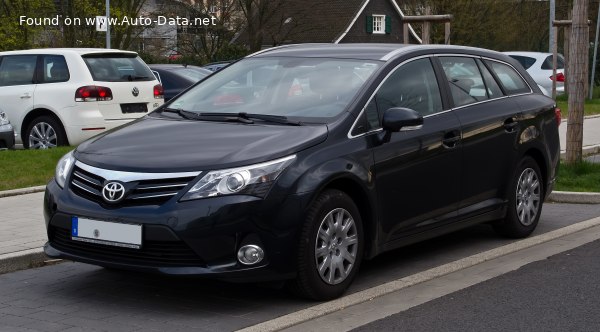

2012 Toyota Avensis III Wagon (facelift 2012) - Photo 1

Toyota Avensis III Wagon (facelift 2012) 2.0 Valvematic (152 Hp) – Full specifications
General information
Brand Toyota
Model Avensis
Generation Avensis III Wagon (facelift 2012)
Modification (Engine) 2.0 Valvematic (152 Hp)
Start of production 2012 year
End of production 2015 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 9.2 l/100 km
25.57 US mpg
30.7 UK mpg
10.87 km/l
Fuel consumption (economy) – extra urban 5.6 l/100 km
42 US mpg
50.44 UK mpg
17.86 km/l
Fuel consumption (economy) – combined 6.9 l/100 km
34.09 US mpg
40.94 UK mpg
14.49 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 9.3 sec
Acceleration 0 – 62 mph 9.3 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.8 sec
Maximum speed 200 km/h
124.27 mph
Emission standard Euro 5 B
Weight-to-power ratio 9.4 kg/Hp, 106.3 Hp/tonne
Weight-to-torque ratio 7.3 kg/Nm, 137.1 Nm/tonne
Engine specs
Power 152 Hp @ 6200 rpm.
Power per litre 76.5 Hp/l
Torque 196 Nm @ 4000 rpm.
144.56 lb.-ft. @ 4000 rpm.
Engine layout Front, Transverse
Engine Model/Code 3ZR-FAE
Engine displacement 1987 cm3
121.25 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 80.5 mm
3.17 in.
Piston Stroke 97.6 mm
3.84 in.
Compression ratio 10:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC – Valvematic
Engine oil capacity 4.2 l
4.44 US qt | 3.7 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.3 l
6.66 US qt | 5.54 UK qt

Space, Volume and weights
Kerb Weight 1430 kg
3152.61 lbs.
Max. weight 2020 kg
4453.34 lbs.
Max load 590 kg
1300.73 lbs.
Trunk (boot) space – minimum 543 l
19.18 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Dimensions
Length 4780 mm
188.19 in.
Width 1810 mm
71.26 in.
Height 1480 mm
58.27 in.
Wheelbase 2700 mm
106.3 in.
Front track 1550 mm
61.02 in.
Rear (Back) track 1540 mm
60.63 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Double wishbone
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
