Specifications: Toyota Avensis Wagon (T22) 1.8 (110 Hp) 1997, 1998, 1999, 2000, 2001, 2002, 2003

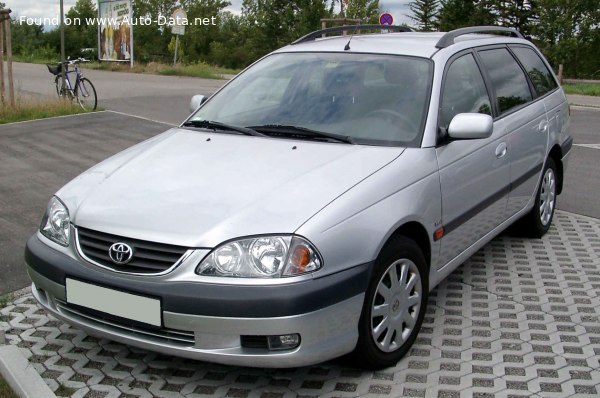

1997 Toyota Avensis Wagon (T22) - Photo 1

Toyota Avensis Wagon (T22) 1.8 (110 Hp) – Full specifications
General information
Brand Toyota
Model Avensis
Generation Avensis Wagon (T22)
Modification (Engine) 1.8 (110 Hp)
Start of production 1997 year
End of production 2003 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 9.6 l/100 km
24.5 US mpg
29.43 UK mpg
10.42 km/l
Fuel consumption (economy) – extra urban 6.2 l/100 km
37.94 US mpg
45.56 UK mpg
16.13 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 11.2 sec
Acceleration 0 – 62 mph 11.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.6 sec
Maximum speed 190 km/h
118.06 mph
Weight-to-power ratio 11.8 kg/Hp, 84.6 Hp/tonne
Weight-to-torque ratio 8.7 kg/Nm, 115.4 Nm/tonne
Engine specs
Power 110 Hp @ 5800 rpm.
Power per litre 62.4 Hp/l
Torque 150 Nm @ 2800 rpm.
110.63 lb.-ft. @ 2800 rpm.
Engine layout Front, Transverse
Engine Model/Code 7A-FE
Engine displacement 1762 cm3
107.52 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 85.5 mm
3.37 in.
Compression ratio 9.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 3.7 l
3.91 US qt | 3.26 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.2 l
6.55 US qt | 5.46 UK qt

Space, Volume and weights
Kerb Weight 1300 kg
2866.01 lbs.
Max. weight 1800 kg
3968.32 lbs.
Max load 500 kg
1102.31 lbs.
Trunk (boot) space – minimum 580 l
20.48 cu. ft.
Trunk (boot) space – maximum 1996 l
70.49 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Dimensions
Length 4570 mm
179.92 in.
Width 1710 mm
67.32 in.
Height 1500 mm
59.06 in.
Wheelbase 2630 mm
103.54 in.
Front track 1480 mm
58.27 in.
Rear (Back) track 1450 mm
57.09 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Spring Strut
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 185/65 R14
Wheel rims size 14
