Specifications: Toyota Aygo 1.0i 12V (67 Hp) 2005, 2006, 2007, 2008, 2009

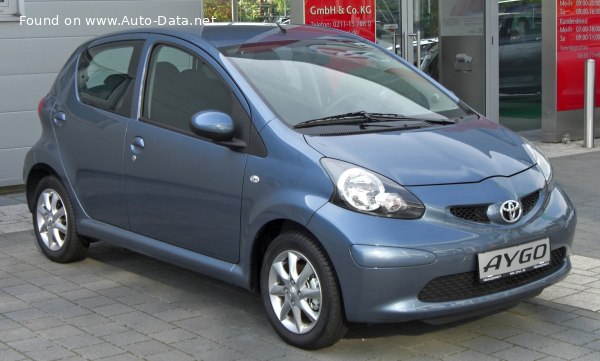

2005 Toyota Aygo - Photo 1

Toyota Aygo 1.0i 12V (67 Hp) – Full specifications
General information
Brand Toyota
Model Aygo
Generation Aygo
Modification (Engine) 1.0i 12V (67 Hp)
Start of production 2005 year
End of production 2009 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 4
Doors 5
Performance specs
Fuel consumption (economy) – urban 4.6 l/100 km
51.13 US mpg
61.41 UK mpg
21.74 km/l
Fuel consumption (economy) – extra urban 3.4 l/100 km
69.18 US mpg
83.08 UK mpg
29.41 km/l
Fuel consumption (economy) – combined 3.8 l/100 km
61.9 US mpg
74.34 UK mpg
26.32 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 14.2 sec
Acceleration 0 – 62 mph 14.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 13.5 sec
Maximum speed 157 km/h
97.56 mph
Weight-to-power ratio 11.8 kg/Hp, 84.8 Hp/tonne
Weight-to-torque ratio 8.5 kg/Nm, 117.7 Nm/tonne
Engine specs
Power 67 Hp @ 6000 rpm.
Power per litre 67.1 Hp/l
Torque 93 Nm @ 3600 rpm.
68.59 lb.-ft. @ 3600 rpm.
Engine layout Front, Transverse
Engine Model/Code 1KR-FE
Engine displacement 998 cm3
60.9 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 71 mm
2.8 in.
Piston Stroke 84 mm
3.31 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 3.1 l
3.28 US qt | 2.73 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 4 l
4.23 US qt | 3.52 UK qt

Space, Volume and weights
Kerb Weight 790 kg
1741.65 lbs.
Max. weight 1160 kg
2557.36 lbs.
Max load 370 kg
815.71 lbs.
Trunk (boot) space – minimum 139 l
4.91 cu. ft.
Trunk (boot) space – maximum 751 l
26.52 cu. ft.
Fuel tank capacity 35 l
9.25 US gal | 7.7 UK gal
Dimensions
Length 3405 mm
134.06 in.
Width 1615 mm
63.58 in.
Height 1465 mm
57.68 in.
Wheelbase 2340 mm
92.13 in.
Front track 1420 mm
55.91 in.
Rear (Back) track 1410 mm
55.51 in.
Minimum turning circle (turning diameter) 9.4 m
30.84 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Spring Strut
Rear suspension Torsion
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 155/65 R14
Wheel rims size 4.5J x 14
