Specifications: Toyota Aygo (facelift 2009) 1.0 VVT-i (68 Hp) 2009, 2010, 2011, 2012

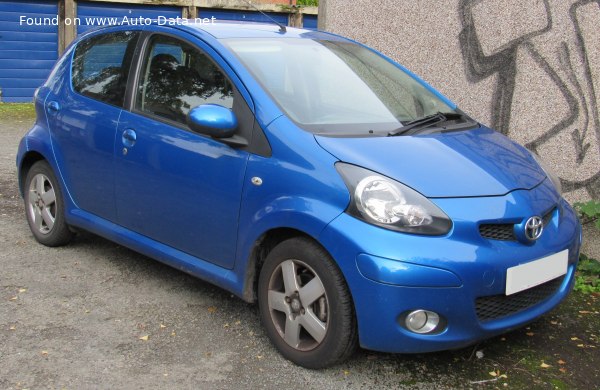

2009 Toyota Aygo (facelift 2009) - Photo 1

Toyota Aygo (facelift 2009) 1.0 VVT-i (68 Hp) – Full specifications
General information
Brand Toyota
Model Aygo
Generation Aygo (facelift 2009)
Modification (Engine) 1.0 VVT-i (68 Hp)
Start of production 2009 year
End of production 2012 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 5.5 l/100 km
42.77 US mpg
51.36 UK mpg
18.18 km/l
Fuel consumption (economy) – extra urban 3.9 l/100 km
60.31 US mpg
72.43 UK mpg
25.64 km/l
Fuel consumption (economy) – combined 4.6 l/100 km
51.13 US mpg
61.41 UK mpg
21.74 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 14.2 sec
Acceleration 0 – 62 mph 14.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 13.5 sec
Maximum speed 157 km/h
97.56 mph
Weight-to-power ratio 12.2 kg/Hp, 81.9 Hp/tonne
Weight-to-torque ratio 8.9 kg/Nm, 112 Nm/tonne
Engine specs
Power 68 Hp @ 6000 rpm.
Power per litre 68.1 Hp/l
Torque 93 Nm @ 3600 rpm.
68.59 lb.-ft. @ 3600 rpm.
Engine layout Front, Transverse
Engine Model/Code 1KR-FE
Engine displacement 998 cm3
60.9 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 71 mm
2.8 in.
Piston Stroke 84 mm
3.31 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 3.1 l
3.28 US qt | 2.73 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 4 l
4.23 US qt | 3.52 UK qt

Space, Volume and weights
Kerb Weight 830 kg
1829.84 lbs.
Max. weight 1190 kg
2623.5 lbs.
Max load 360 kg
793.66 lbs.
Trunk (boot) space – minimum 139 l
4.91 cu. ft.
Fuel tank capacity 35 l
9.25 US gal | 7.7 UK gal
Dimensions
Length 3415 mm
134.45 in.
Width 1615 mm
63.58 in.
Height 1465 mm
57.68 in.
Wheelbase 2340 mm
92.13 in.
Front track 1415 mm
55.71 in.
Rear (Back) track 1405 mm
55.31 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Torsion
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
