Specifications: Toyota Aygo (facelift 2012) 1.0 VVT-i (68 Hp) MultiMode 2012, 2013, 2014

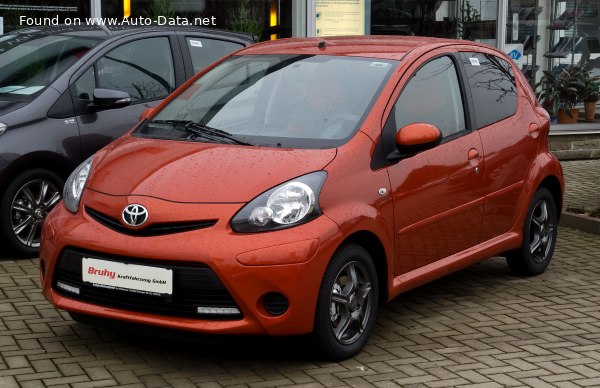

2012 Toyota Aygo (facelift 2012) - Photo 1

Toyota Aygo (facelift 2012) 1.0 VVT-i (68 Hp) MultiMode – Full specifications
General information
Brand Toyota
Model Aygo
Generation Aygo (facelift 2012)
Modification (Engine) 1.0 VVT-i (68 Hp) MultiMode
Start of production 2012 year
End of production 2014 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 4
Doors 5
Performance specs
Fuel consumption (economy) – urban (NEDC) 5.4 l/100 km
43.56 US mpg
52.31 UK mpg
18.52 km/l
Fuel consumption (economy) – extra urban (NEDC) 4 l/100 km
58.8 US mpg
70.62 UK mpg
25 km/l
Fuel consumption (economy) – combined (NEDC) 4.5 l/100 km
52.27 US mpg
62.77 UK mpg
22.22 km/l
CO2 emissions (NEDC) 104 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 14.9 sec
Acceleration 0 – 62 mph 14.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 14.2 sec
Maximum speed 157 km/h
97.56 mph
Emission standard Euro 5
Weight-to-power ratio 11.8 kg/Hp, 84.5 Hp/tonne
Weight-to-torque ratio 8.7 kg/Nm, 115.5 Nm/tonne
Engine specs
Power 68 Hp @ 6000 rpm.
Power per litre 68.1 Hp/l
Torque 93 Nm @ 3600 rpm.
68.59 lb.-ft. @ 3600 rpm.
Engine layout Front, Transverse
Engine Model/Code 1KR-FE
Engine displacement 998 cm3
60.9 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 71 mm
2.8 in.
Piston Stroke 84 mm
3.31 in.
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 3.1 l
3.28 US qt | 2.73 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 4 l
4.23 US qt | 3.52 UK qt

Space, Volume and weights
Kerb Weight 805-860 kg
1774.72 – 1895.98 lbs.
Max. weight 1190 kg
2623.5 lbs.
Max load 330-385 kg
727.53 – 848.78 lbs.
Trunk (boot) space – minimum 139 l
4.91 cu. ft.
Trunk (boot) space – maximum 782 l
27.62 cu. ft.
Fuel tank capacity 35 l
9.25 US gal | 7.7 UK gal
Max. roof load 50 kg
110.23 lbs.
Dimensions
Length 3430 mm
135.04 in.
Width 1615 mm
63.58 in.
Width including mirrors 1860 mm
73.23 in.
Height 1465 mm
57.68 in.
Wheelbase 2340 mm
92.13 in.
Front track 1415 mm
55.71 in.
Rear (Back) track 1405 mm
55.31 in.
Minimum turning circle (turning diameter) 10 m
32.81 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, automatic transmission MultiMode
Front suspension Independent type McPherson
Rear suspension Torsion
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 155/65 R14
Wheel rims size 4.5J x 14
