Specifications: Toyota Aygo X 1.0 VVT-i (72 Hp) CVT 2021, 2022, 2023, 2024, 2025

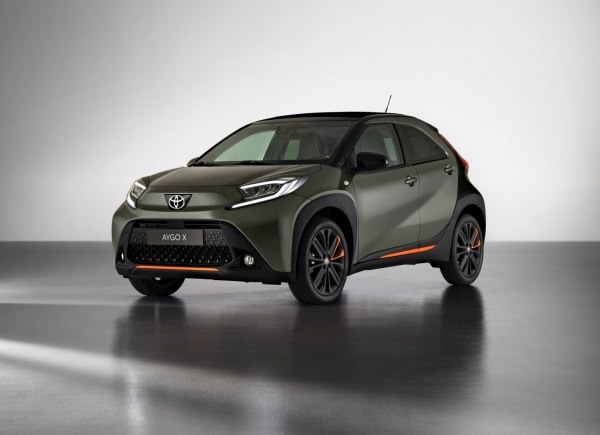

2022 Toyota Aygo X - Photo 1

Toyota Aygo X 1.0 VVT-i (72 Hp) CVT – Full specifications
General information
Brand Toyota
Model Aygo X
Generation Aygo X
Modification (Engine) 1.0 VVT-i (72 Hp) CVT
Start of production November, 2021 year
End of production September, 2025 year
Powertrain Architecture Internal Combustion engine
Body type Crossover
Seats 4
Doors 5
Performance specs
Combined fuel consumption (WLTP) 4.9 l/100 km
48 US mpg
57.65 UK mpg
20.41 km/l
CO2 emissions (WLTP) 110 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 15.5 sec
Acceleration 0 – 62 mph 15.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 14.7 sec
Maximum speed 151 km/h
93.83 mph
Emission standard Euro 6d
Weight-to-power ratio 13.1 kg/Hp, 76.6 Hp/tonne
Weight-to-torque ratio 10.1 kg/Nm, 98.9 Nm/tonne
Engine specs
Power 72 Hp @ 6000 rpm.
Power per litre 72.1 Hp/l
Torque 93 Nm @ 4400 rpm.
68.59 lb.-ft. @ 4400 rpm.
Engine layout Front, Transverse
Engine Model/Code 1KR-FE
Engine displacement 998 cm3
60.9 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 71 mm
2.8 in.
Piston Stroke 84 mm
3.31 in.
Compression ratio 11.8:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Valvetrain DOHC, VVT-i
Engine oil capacity 2.8 l
2.96 US qt | 2.46 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 4.1 l
4.33 US qt | 3.61 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 940-1015 kg
2072.35 – 2237.69 lbs.
Max. weight 1360 kg
2998.29 lbs.
Max load 345-420 kg
760.59 – 925.94 lbs.
Trunk (boot) space – minimum 231 l
8.16 cu. ft.
Trunk (boot) space – maximum 829 l
29.28 cu. ft.
Fuel tank capacity 35 l
9.25 US gal | 7.7 UK gal
Dimensions
Length 3700 mm
145.67 in.
Width 1740 mm
68.5 in.
Height 1525 mm
60.04 in.
Wheelbase 2430 mm
95.67 in.
Front track 1540 mm
60.63 in.
Rear (Back) track 1520 mm
59.84 in.
Front overhang 730 mm
28.74 in.
Rear overhang 540 mm
21.26 in.
Drag coefficient (Cd) 0.319
Minimum turning circle (turning diameter) 9.4 m
30.84 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox automatic transmission CVT
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Torsion
Front brakes Ventilated discs, 355.6 mm
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 175/65 R17; 175/60 R18
Wheel rims size 17; 18
