Specifications: Toyota C-HR II 2.0 (223 Hp) Plug-in Hybrid e-CVT 2023, 2024, 2025

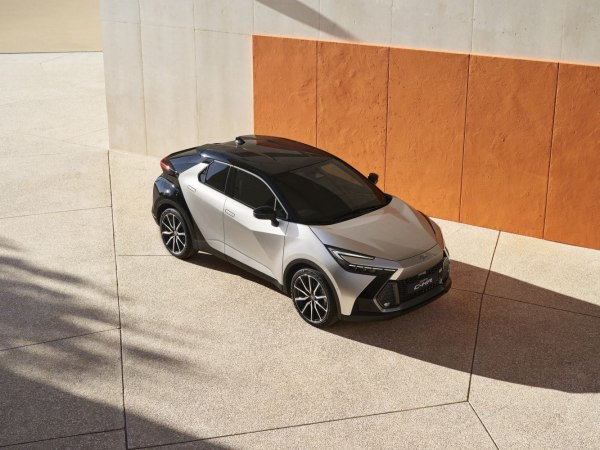

2024 Toyota C-HR II - Photo 1

Toyota C-HR II 2.0 (223 Hp) Plug-in Hybrid e-CVT – Full specifications
General information
Brand Toyota
Model C-HR
Generation C-HR II
Modification (Engine) 2.0 (223 Hp) Plug-in Hybrid e-CVT
Start of production June, 2023 year
Powertrain Architecture PHEV (Plug-in Hybrid Electric Vehicle)
Body type SUV
Seats 5
Doors 5
Performance specs
Combined fuel consumption (WLTP) 0.8-0.9 l/100 km
294.02 – 261.35 US mpg
353.1 – 313.87 UK mpg
125 – 111.11 km/l
CO2 emissions (WLTP) 19-20 g/km
Fuel Type Petrol / electricity
Acceleration 0 – 100 km/h 7.3 sec
Acceleration 0 – 62 mph 7.3 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 6.9 sec
Maximum speed 180 km/h
111.85 mph
Emission standard Euro 6 AP
Electric cars and hybrids specs
Gross battery capacity 13.8 kWh
Battery technology Lithium-ion (Li-Ion)
All-electric range (WLTP) 66 km
41.01 mi
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor power 163 Hp
Electric motor Torque 208 Nm

153.41 lb.-ft.
Electric motor location Integrated into the transmission
Electric motor type Synchronous
System power 223 Hp
Internal combustion engine specs
Power 152 Hp @ 6000 rpm.
Power per litre 76.5 Hp/l
Torque 190 Nm @ 4400-5200 rpm.
140.14 lb.-ft. @ 4400-5200 rpm.
Engine layout Front, Transverse
Engine Model/Code M20A-FXS
Engine displacement 1987 cm3
121.25 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 80.5 mm
3.17 in.
Piston Stroke 97.5 mm
3.84 in.
Compression ratio 14:1
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, VVT-i, VVT-iE
Engine oil capacity 4.2 l
4.44 US qt | 3.7 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.1 l
6.45 US qt | 5.37 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Fuel tank capacity 43 l
11.36 US gal | 9.46 UK gal
Dimensions
Length 4360 mm
171.65 in.
Width 1830 mm
72.05 in.
Height 1570 mm
61.81 in.
Wheelbase 2640 mm
103.94 in.
Front overhang 915 mm
36.02 in.
Rear overhang 805 mm
31.69 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox automatic transmission e-CVT
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
