Specifications: Toyota Camry IX (XV80) 2.0 (173 Hp) Direct Shift CVT 2023, 2024, 2025

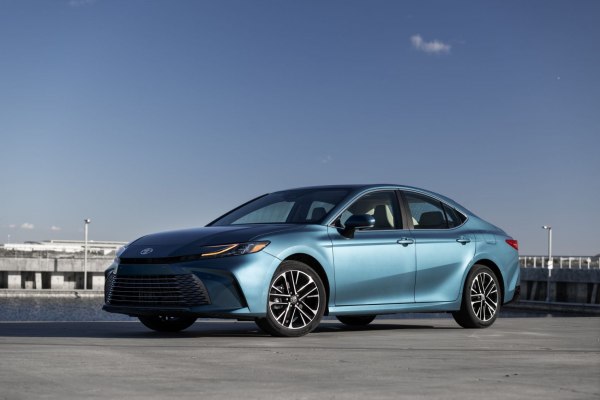

2025 Toyota Camry IX (XV80) - Photo 1

Toyota Camry IX (XV80) 2.0 (173 Hp) Direct Shift CVT – Full specifications
General information
Brand Toyota
Model Camry
Generation Camry IX (XV80)
Modification (Engine) 2.0 (173 Hp) Direct Shift CVT
Start of production October, 2023 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – combined (WLTC) 5.81-6.06 l/100 km
40.48 – 38.81 US mpg
48.62 – 46.61 UK mpg
17.21 – 16.5 km/l
Fuel Type Petrol (Gasoline)
Maximum speed 205 km/h
127.38 mph
Emission standard China VI
Weight-to-power ratio 9 kg/Hp, 111.6 Hp/tonne
Weight-to-torque ratio 7.5 kg/Nm, 132.9 Nm/tonne
Engine specs
Power 173 Hp @ 6600 rpm.
Power per litre 87.1 Hp/l
Torque 206 Nm @ 4600-5000 rpm.
151.94 lb.-ft. @ 4600-5000 rpm.
Engine layout Front, Transverse
Engine Model/Code M20C-FKS
Engine displacement 1987 cm3
121.25 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 80.5 mm
3.17 in.
Piston Stroke 97.6 mm
3.84 in.
Compression ratio 13:1
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 3.9 l
4.12 US qt | 3.43 UK qt
Coolant 6.8 l
7.19 US qt | 5.98 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1550-1570 kg
3417.17 – 3461.26 lbs.
Max. weight 2030 kg
4475.38 lbs.
Max load 460-480 kg
1014.13 – 1058.22 lbs.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Dimensions
Length 4915 mm
193.5 in.
Width 1840 mm
72.44 in.
Height 1450 mm
57.09 in.
Wheelbase 2825 mm
111.22 in.
Front track 1590 mm
62.6 in.
Rear (Back) track 1600 mm
62.99 in.
Minimum turning circle (turning diameter) 11.4 m
37.4 ft.
Approach angle 13°
Departure angle 16°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox automatic transmission Direct Shift CVT
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 215/55 R17; 235/40 R19
Wheel rims size 17; 19
