Specifications: Toyota Celsior II 4.0 V8 i (280 Hp) 1997, 1998, 1999, 2000

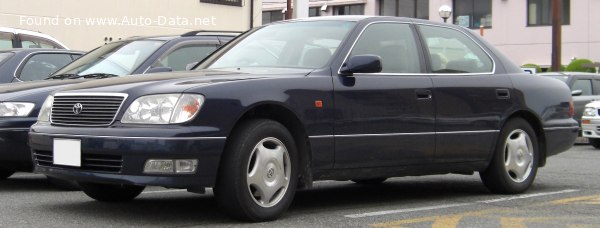

1995 Toyota Celsior II - Photo 1

Toyota Celsior II 4.0 V8 i (280 Hp) – Full specifications
General information
Brand Toyota
Model Celsior
Generation Celsior II
Modification (Engine) 4.0 V8 i (280 Hp)
Start of production 1997 year
End of production 2000 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 5.9 kg/Hp, 170.7 Hp/tonne
Weight-to-torque ratio 4.1 kg/Nm, 245.1 Nm/tonne
Engine specs
Power 280 Hp @ 6000 rpm.
Power per litre 70.6 Hp/l
Torque 402 Nm @ 4000 rpm.
296.5 lb.-ft. @ 4000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 1UZ-FE
Engine displacement 3968 cm3
242.14 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 87.5 mm
3.44 in.
Piston Stroke 82.5 mm
3.25 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 4.8 l
5.07 US qt | 4.22 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 1640 kg
3615.58 lbs.
Fuel tank capacity 85 l
22.45 US gal | 18.7 UK gal
Dimensions
Length 4995 mm
196.65 in.
Width 1830 mm
72.05 in.
Height 1435 mm
56.5 in.
Wheelbase 2850 mm
112.2 in.
Minimum turning circle (turning diameter) 10.6 m
34.78 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 5 gears, automatic transmission
Front suspension Coil spring
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 225/60 R16 98H
Wheel rims size 7JJ x 16
