Specifications: Toyota Corolla Cross (facelift 2024) 2.0 (180 Hp) Hybrid AWD-i e-CVT 2025

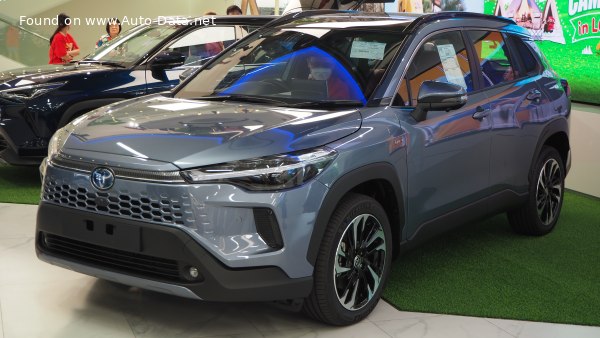

2024 Toyota Corolla Cross (facelift 2024) - Photo 1

Toyota Corolla Cross (facelift 2024) 2.0 (180 Hp) Hybrid AWD-i e-CVT – Full specifications
General information
Brand Toyota
Model Corolla Cross
Generation Corolla Cross (facelift 2024)
Modification (Engine) 2.0 (180 Hp) Hybrid AWD-i e-CVT
Start of production August, 2025 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption at Low speed (WLTP) 4.5-4.6 l/100 km
52.27 – 51.13 US mpg
62.77 – 61.41 UK mpg
22.22 – 21.74 km/l
Fuel consumption at Medium speed (WLTP) 4.2-4.3 l/100 km
56 – 54.7 US mpg
67.26 – 65.69 UK mpg
23.81 – 23.26 km/l
Fuel consumption at high speed (WLTP) 4.7 l/100 km
50.05 US mpg
60.1 UK mpg
21.28 km/l
Fuel consumption at very high speed (WLTP) 6.8-6.9 l/100 km
34.59 – 34.09 US mpg
41.54 – 40.94 UK mpg
14.71 – 14.49 km/l
Combined fuel consumption (WLTP) 5.3-5.4 l/100 km
44.38 – 43.56 US mpg
53.3 – 52.31 UK mpg
18.87 – 18.52 km/l
CO2 emissions (WLTP) 120-121 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 7.6 sec
Acceleration 0 – 62 mph 7.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.2 sec
Maximum speed 180 km/h
111.85 mph
Emission standard Euro 6E
Weight-to-power ratio 7.9 kg/Hp, 126.3 Hp/tonne
Weight-to-torque ratio 7.5 kg/Nm, 133.3 Nm/tonne
Electric cars and hybrids specs
Battery technology Nickel-metal hydride (NiMH)
Battery location Below the floor, under the rear seats
Electric motor 1
Electric motor power 113 Hp
Electric motor location Integrated into the transmission
Electric motor type Synchronous
Electric motor 2
Electric motor power 41 Hp
Electric motor location Rear axle, Transverse
System power 180 Hp
Internal combustion engine specs
Power 133 Hp
Power per litre 66.9 Hp/l
Torque 190 Nm @ 4400-5200 rpm.
140.14 lb.-ft. @ 4400-5200 rpm.
Engine layout Front, Transverse
Engine Model/Code M20A-FXS
Engine displacement 1987 cm3
121.25 cu. in.
Number of cylinders 4
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, Dual VVT-i
Engine oil capacity 4.6 l
4.86 US qt | 4.05 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.1 l
6.45 US qt | 5.37 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1425-1500 kg
3141.59 – 3306.93 lbs.
Max. weight 2015 kg
4442.31 lbs.
Max load 515-590 kg
1135.38 – 1300.73 lbs.
Trunk (boot) space – minimum 473 l
16.7 cu. ft.
Fuel tank capacity 43 l
11.36 US gal | 9.46 UK gal
Permitted trailer load with brakes (12%) 750 kg
1653.47 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4460 mm
175.59 in.
Width 1825 mm
71.85 in.
Height 1620 mm
63.78 in.
Wheelbase 2640 mm
103.94 in.
Front track 1560 mm
61.42 in.
Rear (Back) track 1560 mm
61.42 in.
Front overhang 955 mm
37.6 in.
Rear overhang 865 mm
34.06 in.
Ride height (ground clearance) 160 mm
6.3 in.
Approach angle 27°
Departure angle 28.5°
Drivetrain, brakes and suspension specs
Drivetrain Architecture An Internal combustion engine (ICE) drives the front wheels, one electric motor drives the front wheels, one electric motor drives the rear wheels. There is an ability for running in full electric or mixed mode.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox automatic transmission e-CVT
Front suspension Independent type McPherson
Rear suspension Double wishbone
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/50 R18
Wheel rims size 18
