Specifications: Toyota Corolla Hatch IX (E120, E130) 1.6i 16V (110 Hp) Automatic 2001, 2002, 2003, 2004, 2005, 2006

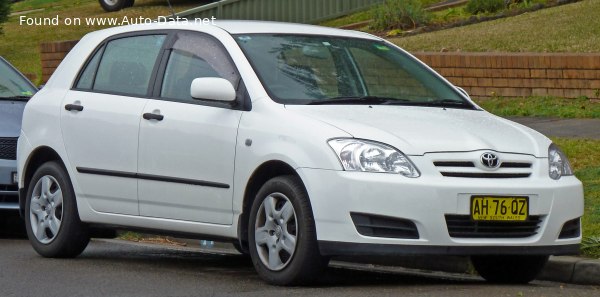

2002 Toyota Corolla Hatch IX (E120, E130) - Photo 1

Toyota Corolla Hatch IX (E120, E130) 1.6i 16V (110 Hp) Automatic – Full specifications
General information
Brand Toyota
Model Corolla
Generation Corolla Hatch IX (E120, E130)
Modification (Engine) 1.6i 16V (110 Hp) Automatic
Start of production 2001 year
End of production 2006 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 3-5
Performance specs
Fuel consumption (economy) – urban 10.5 l/100 km
22.4 US mpg
26.9 UK mpg
9.52 km/l
Fuel consumption (economy) – extra urban 6.3 l/100 km
37.34 US mpg
44.84 UK mpg
15.87 km/l
Fuel consumption (economy) – combined 7.8 l/100 km
30.16 US mpg
36.22 UK mpg
12.82 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 11.8 sec
Acceleration 0 – 62 mph 11.8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11.2 sec
Maximum speed 175 km/h
108.74 mph
Weight-to-power ratio 10.3 kg/Hp, 97.3 Hp/tonne
Weight-to-torque ratio 7.5 kg/Nm, 132.7 Nm/tonne
Engine specs
Power 110 Hp @ 6000 rpm.
Power per litre 68.8 Hp/l
Torque 150 Nm @ 4800 rpm.
110.63 lb.-ft. @ 4800 rpm.
Engine layout Front, Transverse
Engine Model/Code 3ZZ-FE
Engine displacement 1598 cm3
97.52 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 79 mm
3.11 in.
Piston Stroke 81.5 mm
3.21 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 4.2 l
4.44 US qt | 3.7 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.5 l
6.87 US qt | 5.72 UK qt

Space, Volume and weights
Kerb Weight 1130 kg
2491.22 lbs.
Max. weight 1655 kg
3648.65 lbs.
Max load 525 kg
1157.43 lbs.
Trunk (boot) space – minimum 289 l
10.21 cu. ft.
Trunk (boot) space – maximum 960 l
33.9 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Dimensions
Length 4180 mm
164.57 in.
Width 1710 mm
67.32 in.
Height 1475 mm
58.07 in.
Wheelbase 2600 mm
102.36 in.
Front track 1490 mm
58.66 in.
Rear (Back) track 1470 mm
57.87 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Spring Strut
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 195/65 R15
Wheel rims size 15
