Specifications: Toyota Corolla Hatch VIII (E110) 1.6 i 16V (110 Hp) 1997, 1998, 1999, 2000, 2001

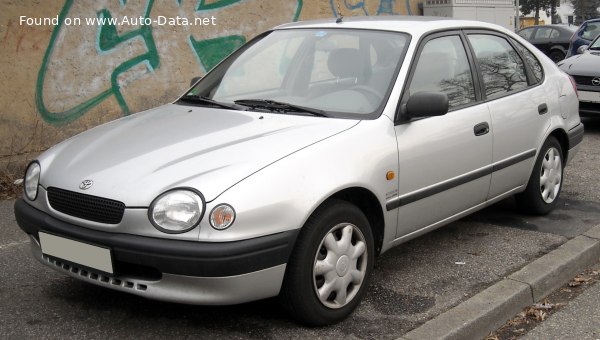

1998 Toyota Corolla Hatch VIII (E110) - Photo 1

Toyota Corolla Hatch VIII (E110) 1.6 i 16V (110 Hp) – Full specifications
General information
Brand Toyota
Model Corolla
Generation Corolla Hatch VIII (E110)
Modification (Engine) 1.6 i 16V (110 Hp)
Start of production 1997 year
End of production 2001 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 10.3 l/100 km
22.84 US mpg
27.43 UK mpg
9.71 km/l
Fuel consumption (economy) – extra urban 6.4 l/100 km
36.75 US mpg
44.14 UK mpg
15.63 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 10.2 sec
Acceleration 0 – 62 mph 10.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.7 sec
Maximum speed 195 km/h
121.17 mph
Weight-to-power ratio 10 kg/Hp, 100 Hp/tonne
Weight-to-torque ratio 7.6 kg/Nm, 131.8 Nm/tonne
Engine specs
Power 110 Hp @ 6000 rpm.
Power per litre 69.3 Hp/l
Torque 145 Nm @ 4800 rpm.
106.95 lb.-ft. @ 4800 rpm.
Engine layout Front, Transverse
Engine Model/Code 4A-FE
Engine displacement 1587 cm3
96.84 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 77 mm
3.03 in.
Compression ratio 9.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 3.2 l
3.38 US qt | 2.82 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6 l
6.34 US qt | 5.28 UK qt

Space, Volume and weights
Kerb Weight 1100 kg
2425.08 lbs.
Max. weight 1615 kg
3560.47 lbs.
Max load 515 kg
1135.38 lbs.
Trunk (boot) space – minimum 372 l
13.14 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Dimensions
Length 4270 mm
168.11 in.
Width 1690 mm
66.54 in.
Height 1385 mm
54.53 in.
Wheelbase 2465 mm
97.05 in.
Front track 1460 mm
57.48 in.
Rear (Back) track 1450 mm
57.09 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Spring Strut
Rear suspension Spring Strut
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 175/65 R14
