Specifications: Toyota Corolla Hatchback XII (E210) 1.2 D-4T (116 Hp) CVT-i 2019, 2020, 2021, 2022

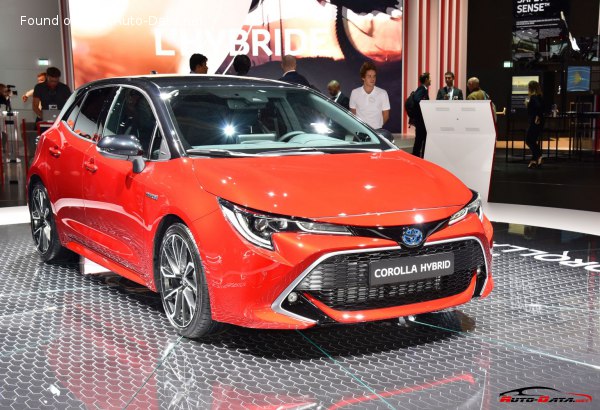

2019 Toyota Corolla Hatchback XII (E210) - Photo 1

Toyota Corolla Hatchback XII (E210) 1.2 D-4T (116 Hp) CVT-i – Full specifications
General information
Brand Toyota
Model Corolla
Generation Corolla Hatchback XII (E210)
Modification (Engine) 1.2 D-4T (116 Hp) CVT-i
Start of production 2019 year
End of production 2022 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 7.7 l/100 km
30.55 US mpg
36.69 UK mpg
12.99 km/l
Fuel consumption (economy) – extra urban 5.5 l/100 km
42.77 US mpg
51.36 UK mpg
18.18 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 10.1 sec
Acceleration 0 – 62 mph 10.1 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.6 sec
Maximum speed 195 km/h
121.17 mph
Emission standard Euro 6d-TEMP
Weight-to-power ratio 11.3 kg/Hp, 88.5 Hp/tonne
Weight-to-torque ratio 7.1 kg/Nm, 141.2 Nm/tonne
Engine specs
Power 116 Hp @ 5200-5600 rpm.
Power per litre 97 Hp/l
Torque 185 Nm @ 1500-4000 rpm.
136.45 lb.-ft. @ 1500-4000 rpm.
Engine layout Front, Transverse
Engine Model/Code 8NR-FTS
Engine displacement 1196 cm3
72.98 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 71.5 mm
2.81 in.
Piston Stroke 74.5 mm
2.93 in.
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.7 l
7.08 US qt | 5.9 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1310-1340 kg
2888.06 – 2954.19 lbs.
Max. weight 1615 kg
3560.47 lbs.
Max load 275-305 kg
606.27 – 672.41 lbs.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Dimensions
Length 4375 mm
172.24 in.
Width 1790 mm
70.47 in.
Height 1460 mm
57.48 in.
Wheelbase 2640 mm
103.94 in.
Front track 1530 mm
60.24 in.
Rear (Back) track 1530 mm
60.24 in.
Ride height (ground clearance) 135 mm
5.31 in.
Minimum turning circle (turning diameter) 10.6 m
34.78 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox automatic transmission CVT-i
Front suspension Independent type McPherson
Rear suspension Double wishbone
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
