Specifications: Toyota Corolla Hatchback XII (E210, facelift 2022) GR 1.6 (300 Hp) GR-FOUR DAT 2024, 2025

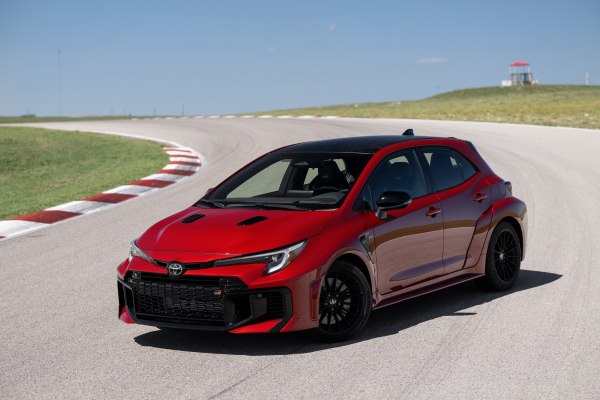

2023 Toyota Corolla Hatchback XII (E210, facelift 2022) - Photo 1

Toyota Corolla Hatchback XII (E210, facelift 2022) GR 1.6 (300 Hp) GR-FOUR DAT – Full specifications
General information
Brand Toyota
Model Corolla
Generation Corolla Hatchback XII (E210, facelift 2022)
Modification (Engine) GR 1.6 (300 Hp) GR-FOUR DAT
Start of production August, 2024 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 12.4 l/100 km
18.97 US mpg
22.78 UK mpg
8.06 km/l
Fuel consumption (economy) – extra urban 8.7 l/100 km
27.04 US mpg
32.47 UK mpg
11.49 km/l
Fuel consumption (economy) – combined 10.7 l/100 km
21.98 US mpg
26.4 UK mpg
9.35 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 60 mph 4.9 sec
Maximum speed 230 km/h, Electronically limited
142.92 mph
Emission standard LEV III ULEV70
Weight-to-power ratio 5 kg/Hp, 199.3 Hp/tonne
Weight-to-torque ratio 3.8 kg/Nm, 265.8 Nm/tonne
Engine specs
Power 300 Hp @ 6500 rpm.
Power per litre 185.4 Hp/l
Torque 400 Nm @ 3250-4600 rpm.
295.02 lb.-ft. @ 3250-4600 rpm.
Engine layout Front, Transverse
Engine Model/Code G16E-GTS
Engine displacement 1618 cm3
98.74 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 87.5 mm
3.44 in.
Piston Stroke 89.7 mm
3.53 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.3 l
4.54 US qt | 3.78 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1505-1518 kg
3317.96 – 3346.62 lbs.
Trunk (boot) space – minimum 504 l
17.8 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Dimensions
Length 4409 mm
173.58 in.
Width 1849 mm
72.8 in.
Height 1478 mm
58.19 in.
Wheelbase 2639 mm
103.9 in.
Front track 1590 mm
62.6 in.
Rear (Back) track 1590 mm
62.6 in.
Front overhang 1051 mm
41.38 in.
Rear overhang 719 mm
28.31 in.
Ride height (ground clearance) 135 mm
5.31 in.
Drag coefficient (Cd) 0.35
Minimum turning circle (turning diameter) 11 m
36.09 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission DAT
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Double wishbone, Transverse stabilizer, Coil spring
Front brakes Ventilated discs, 355×28 mm
Rear brakes Ventilated discs, 297×18 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/40 R18
Wheel rims size 8.5J x 18
