Specifications: Toyota Corolla II 4-door sedan (E20) 1200 (73 Hp) 1970, 1971, 1972, 1973, 1974

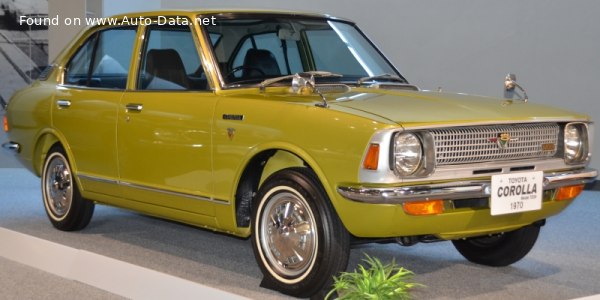

1970 Toyota Corolla II 4-door sedan (E20) - Photo 1

Toyota Corolla II 4-door sedan (E20) 1200 (73 Hp) – Full specifications
General information
Brand Toyota
Model Corolla
Generation Corolla II 4-door sedan (E20)
Modification (Engine) 1200 (73 Hp)
Start of production 1970 year
End of production 1974 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – combined 4.7 l/100 km
50.05 US mpg
60.1 UK mpg
21.28 km/l
Fuel Type Petrol (Gasoline)
Maximum speed 150 km/h
93.21 mph
Weight-to-power ratio 10.7 kg/Hp, 93.6 Hp/tonne
Weight-to-torque ratio 8.3 kg/Nm, 120.5 Nm/tonne
Engine specs
Power 73 Hp @ 6600 rpm.
Power per litre 62.6 Hp/l
Torque 94 Nm @ 4200 rpm.
69.33 lb.-ft. @ 4200 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 3K-D
Engine displacement 1166 cm3
71.15 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 75 mm
2.95 in.
Piston Stroke 66 mm
2.6 in.
Compression ratio 10:1
Number of valves per cylinder 2
Fuel injection system Carburettor
Engine aspiration Naturally aspirated engine
Valvetrain OHV

Space, Volume and weights
Kerb Weight 780 kg
1719.61 lbs.
Fuel tank capacity 45 l
11.89 US gal | 9.9 UK gal
Dimensions
Length 3945 mm
155.31 in.
Width 1505 mm
59.25 in.
Height 1375 mm
54.13 in.
Wheelbase 2335 mm
91.93 in.
Front track 1255 mm
49.41 in.
Rear (Back) track 1245 mm
49.02 in.
Minimum turning circle (turning diameter) 9 m
29.53 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 4 gears, manual transmission
Front suspension Independent coil spring, Transverse stabilizer
Rear suspension Rigid axle suspension, Leaf spring
Front brakes Disc
Rear brakes Drum
Steering type Cone worm with recirculation balls
