Specifications: Toyota Corolla II Van (E20) 1200 (68 Hp) 1970, 1971, 1972, 1973, 1974

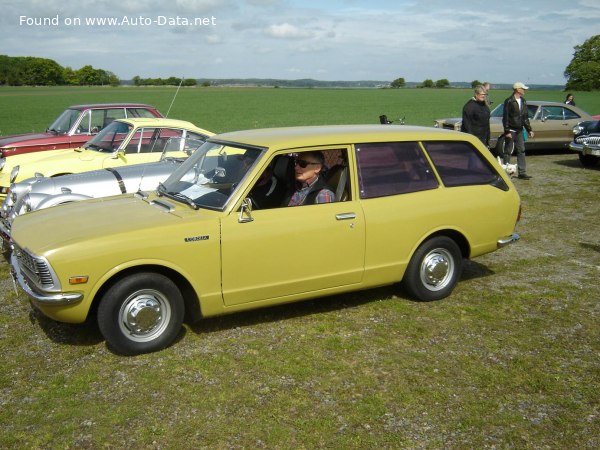

1970 Toyota Corolla II Van (E20) - Photo 1

Toyota Corolla II Van (E20) 1200 (68 Hp) – Full specifications
General information
Brand Toyota
Model Corolla
Generation Corolla II Van (E20)
Modification (Engine) 1200 (68 Hp)
Start of production May, 1970 year
End of production July, 1974 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 3
Performance specs
Fuel consumption (economy) – combined 5 l/100 km
47.04 US mpg
56.5 UK mpg
20 km/l
Fuel Type Petrol (Gasoline)
Maximum speed 135 km/h
83.89 mph
Weight-to-power ratio 11.3 kg/Hp, 88.9 Hp/tonne
Weight-to-torque ratio 8.2 kg/Nm, 121.6 Nm/tonne
Engine specs
Power 68 Hp @ 6000 rpm.
Power per litre 58.3 Hp/l
Torque 93 Nm @ 3800 rpm.
68.59 lb.-ft. @ 3800 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 3K
Engine displacement 1166 cm3
71.15 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 75 mm
2.95 in.
Piston Stroke 66 mm
2.6 in.
Compression ratio 9:1
Number of valves per cylinder 2
Fuel injection system Carburettor
Engine aspiration Naturally aspirated engine
Valvetrain OHV

Space, Volume and weights
Kerb Weight 765 kg
1686.54 lbs.
Fuel tank capacity 40 l
10.57 US gal | 8.8 UK gal
Dimensions
Length 3980 mm
156.69 in.
Width 1505 mm
59.25 in.
Height 1405 mm
55.31 in.
Wheelbase 2335 mm
91.93 in.
Front track 1255 mm
49.41 in.
Rear (Back) track 1245 mm
49.02 in.
Ride height (ground clearance) 180 mm
7.09 in.
Minimum turning circle (turning diameter) 9 m
29.53 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 4 gears, manual transmission
Front suspension Independent coil spring, Transverse stabilizer
Rear suspension Rigid axle suspension, Leaf spring
Front brakes Disc
Rear brakes Drum
Steering type Cone worm with recirculation balls
