Specifications: Toyota Corolla IX (E120, E130) 1.4 i 16V (97 Hp) 2001, 2002, 2003, 2004, 2005, 2006

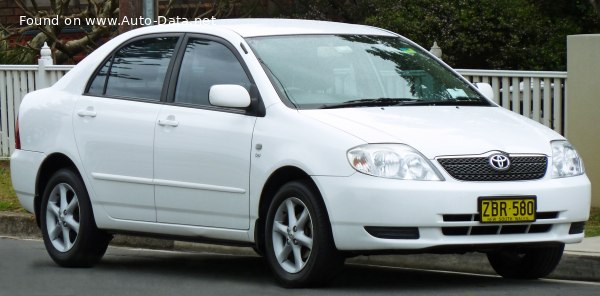

2002 Toyota Corolla IX (E120, E130) - Photo 1

Toyota Corolla IX (E120, E130) 1.4 i 16V (97 Hp) – Full specifications
General information
Brand Toyota
Model Corolla
Generation Corolla IX (E120, E130)
Modification (Engine) 1.4 i 16V (97 Hp)
Start of production 2001 year
End of production 2006 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 8.9 l/100 km
26.43 US mpg
31.74 UK mpg
11.24 km/l
Fuel consumption (economy) – extra urban 5.7 l/100 km
41.27 US mpg
49.56 UK mpg
17.54 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 12 sec
Acceleration 0 – 62 mph 12 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11.4 sec
Maximum speed 185 km/h
114.95 mph
Weight-to-power ratio 11.3 kg/Hp, 88.2 Hp/tonne
Weight-to-torque ratio 8.5 kg/Nm, 118.2 Nm/tonne
Engine specs
Power 97 Hp @ 6000 rpm.
Power per litre 69.4 Hp/l
Torque 130 Nm @ 4400 rpm.
95.88 lb.-ft. @ 4400 rpm.
Engine layout Front, Transverse
Engine Model/Code 4ZZ-FE
Engine displacement 1398 cm3
85.31 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 79 mm
3.11 in.
Piston Stroke 71.3 mm
2.81 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 4.2 l
4.44 US qt | 3.7 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.5 l
6.87 US qt | 5.72 UK qt

Space, Volume and weights
Kerb Weight 1100 kg
2425.08 lbs.
Max. weight 1655 kg
3648.65 lbs.
Max load 555 kg
1223.57 lbs.
Trunk (boot) space – minimum 437 l
15.43 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Dimensions
Length 4375 mm
172.24 in.
Width 1710 mm
67.32 in.
Height 1470 mm
57.87 in.
Wheelbase 2600 mm
102.36 in.
Front track 1490 mm
58.66 in.
Rear (Back) track 1470 mm
57.87 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Spring Strut
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 175/65 R14
