Specifications: Toyota Corolla Touring Sports XII (E210) 1.2 Turbo (116 Hp) 2019, 2020, 2021, 2022

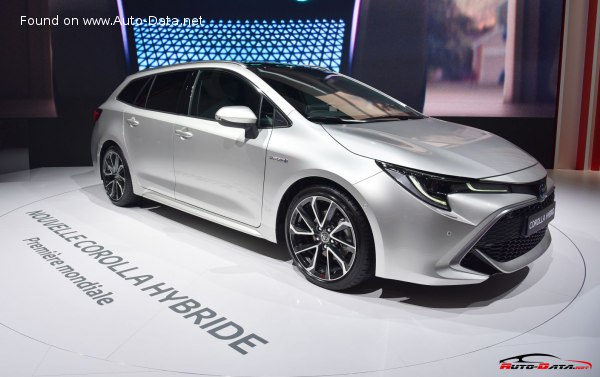

2019 Toyota Corolla Touring Sports XII (E210) - Photo 1

Toyota Corolla Touring Sports XII (E210) 1.2 Turbo (116 Hp) – Full specifications
General information
Brand Toyota
Model Corolla
Generation Corolla Touring Sports XII (E210)
Modification (Engine) 1.2 Turbo (116 Hp)
Start of production 2019 year
End of production 2022 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 6.6-7.0 l/100 km
35.64 – 33.6 US mpg
42.8 – 40.35 UK mpg
15.15 – 14.29 km/l
Fuel consumption (economy) – extra urban 4.7-4.8 l/100 km
50.05 – 49 US mpg
60.1 – 58.85 UK mpg
21.28 – 20.83 km/l
Fuel consumption (economy) – combined 5.5-5.6 l/100 km
42.77 – 42 US mpg
51.36 – 50.44 UK mpg
18.18 – 17.86 km/l
CO2 emissions 125-128 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 9.6 sec
Acceleration 0 – 62 mph 9.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.1 sec
Maximum speed 200 km/h
124.27 mph
Emission standard Euro 6d-TEMP-EVAP-ISC
Weight-to-power ratio 11.3 kg/Hp, 88.2 Hp/tonne
Weight-to-torque ratio 7.1 kg/Nm, 140.7 Nm/tonne
Engine specs
Power 116 Hp
Power per litre 96.9 Hp/l
Torque 185 Nm @ 1500-4000 rpm.
136.45 lb.-ft. @ 1500-4000 rpm.
Engine layout Front, Transverse
Engine Model/Code 8NR-FTS
Engine displacement 1197 cm3
73.05 cu. in.
Number of cylinders 4
Engine configuration Inline
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain Valvematic
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.4 l
6.76 US qt | 5.63 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1315-1515 kg
2899.08 – 3340 lbs.
Max. weight 1820-1850 kg
4012.41 – 4078.55 lbs.
Max load 335-505 kg
738.55 – 1113.33 lbs.
Trunk (boot) space – minimum 596 l
21.05 cu. ft.
Trunk (boot) space – maximum 1606 l
56.72 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Permitted trailer load with brakes (12%) 1300 kg
2866.01 lbs.
Permitted trailer load without brakes 450 kg
992.08 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4650 mm
183.07 in.
Width 1790 mm
70.47 in.
Height 1435 mm
56.5 in.
Wheelbase 2700 mm
106.3 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Double wishbone
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
