Specifications: Toyota Corolla VII (E100) 2.0 D (72 Hp) Automatic 1992, 1993, 1994, 1995, 1996, 1997

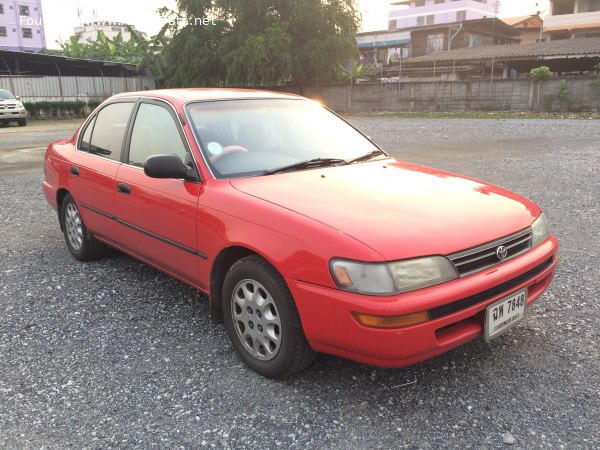

1993 Toyota Corolla VII (E100) - Photo 1

Toyota Corolla VII (E100) 2.0 D (72 Hp) Automatic – Full specifications
General information
Brand Toyota
Model Corolla
Generation Corolla VII (E100)
Modification (Engine) 2.0 D (72 Hp) Automatic
Start of production 1992 year
End of production 1997 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 6.7 l/100 km
35.11 US mpg
42.16 UK mpg
14.93 km/l
Fuel consumption (economy) – extra urban 4.2 l/100 km
56 US mpg
67.26 UK mpg
23.81 km/l
Fuel consumption (economy) – combined 5.9 l/100 km
39.87 US mpg
47.88 UK mpg
16.95 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 14.1 sec
Acceleration 0 – 62 mph 14.1 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 13.4 sec
Maximum speed 165 km/h
102.53 mph
Weight-to-power ratio 14.4 kg/Hp, 69.2 Hp/tonne
Weight-to-torque ratio 7.9 kg/Nm, 126 Nm/tonne
Engine specs
Power 72 Hp @ 4600 rpm.
Power per litre 36.5 Hp/l
Torque 131 Nm @ 2600 rpm.
96.62 lb.-ft. @ 2600 rpm.
Engine layout Front, Transverse
Engine Model/Code 2C
Engine displacement 1975 cm3
120.52 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 86 mm
3.39 in.
Piston Stroke 85 mm
3.35 in.
Compression ratio 23:1
Number of valves per cylinder 4
Fuel injection system Precombustion chamber injection
Engine aspiration Naturally aspirated engine
Valvetrain OHC
Engine oil capacity 5.3 l
5.6 US qt | 4.66 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.3 l
7.71 US qt | 6.42 UK qt

Space, Volume and weights
Kerb Weight 1040 kg
2292.81 lbs.
Trunk (boot) space – minimum 420 l
14.83 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Dimensions
Length 4270 mm
168.11 in.
Width 1685 mm
66.34 in.
Height 1380 mm
54.33 in.
Wheelbase 2465 mm
97.05 in.
Front track 1460 mm
57.48 in.
Rear (Back) track 1450 mm
57.09 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Wishbone
Rear suspension Spring Strut
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 165/70 R14
Wheel rims size 14
