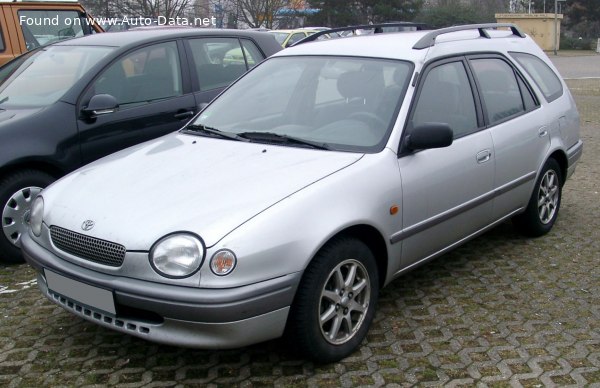

| General information | |
|---|---|
| Brand | Toyota |
| Model | Corolla |
| Generation | Corolla Wagon VIII (E110) |
| Modification (Engine) | 1.3 i 16V (86 Hp) |
| Start of production | 1997 year |
| End of production | 1999 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Station wagon (estate) |
| Seats | 5 |
| Doors | 5 |
| Performance specs | |
| Fuel consumption (economy) – urban | 8.9 l/100 km 26.43 US mpg 31.74 UK mpg 11.24 km/l |
| Fuel consumption (economy) – extra urban | 6.1 l/100 km 38.56 US mpg 46.31 UK mpg 16.39 km/l |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 12.5 sec |
| Acceleration 0 – 62 mph | 12.5 sec |
| Acceleration 0 – 60 mph (Calculated by Auto-Data.net) | 11.9 sec |
| Maximum speed | 175 km/h 108.74 mph |
| Weight-to-power ratio | 12.5 kg/Hp, 80 Hp/tonne |
| Weight-to-torque ratio | 9 kg/Nm, 111.6 Nm/tonne |
| Engine specs | |
| Power | 86 Hp @ 5400 rpm. |
| Power per litre | 64.6 Hp/l |
| Torque | 120 Nm @ 4200 rpm. 88.51 lb.-ft. @ 4200 rpm. |
| Engine layout | Front, Transverse |
| Engine Model/Code | 4E-FE |
| Engine displacement | 1332 cm3 81.28 cu. in. |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 74 mm 2.91 in. |
| Piston Stroke | 77.4 mm 3.05 in. |
| Compression ratio | 10:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Engine oil capacity | 2.8 l 2.96 US qt | 2.46 UK qt |
| Engine oil specification |  Log in to see. |
| Coolant | 4.8 l 5.07 US qt | 4.22 UK qt |
|
|
|
| Space, Volume and weights | |
| Kerb Weight | 1075 kg 2369.97 lbs. |
| Max. weight | 1615 kg 3560.47 lbs. |
| Max load | 540 kg 1190.5 lbs. |
| Trunk (boot) space – minimum | 308 l 10.88 cu. ft. |
| Trunk (boot) space – maximum | 1218 l 43.01 cu. ft. |
| Fuel tank capacity | 50 l 13.21 US gal | 11 UK gal |
| Dimensions | |
| Length | 4320 mm 170.08 in. |
| Width | 1690 mm 66.54 in. |
| Height | 1445 mm 56.89 in. |
| Wheelbase | 2465 mm 97.05 in. |
| Front track | 1460 mm 57.48 in. |
| Rear (Back) track | 1450 mm 57.09 in. |
| Drivetrain, brakes and suspension specs | |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Coil spring |
| Rear suspension | Coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Drum |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 165/70 R14 |
