Specifications: Toyota Corolla XII (E210, facelift 2022) 1.5 TNGA (123 Hp) CVT 2023, 2024, 2025

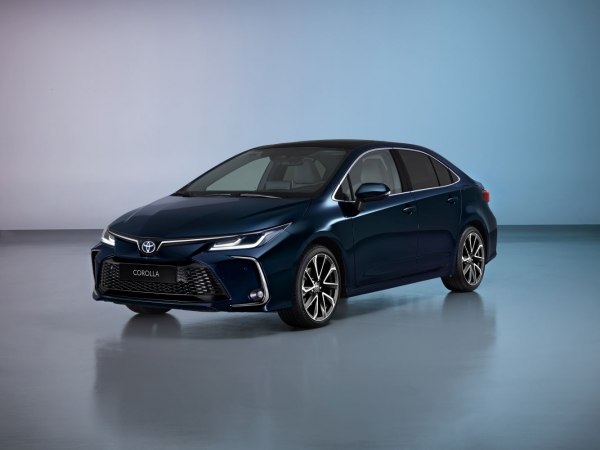

2023 Toyota Corolla XII (E210, facelift 2022) - Photo 1

Toyota Corolla XII (E210, facelift 2022) 1.5 TNGA (123 Hp) CVT – Full specifications
General information
Brand Toyota
Model Corolla
Generation Corolla XII (E210, facelift 2022)
Modification (Engine) 1.5 TNGA (123 Hp) CVT
Start of production 2023 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Combined fuel consumption (WLTP) 6.0-6.4 l/100 km
39.2 – 36.75 US mpg
47.08 – 44.14 UK mpg
16.67 – 15.63 km/l
CO2 emissions (WLTP) 135-144 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 11.5 sec
Acceleration 0 – 62 mph 11.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.9 sec
Maximum speed 190 km/h
118.06 mph
Emission standard Euro 6 AG
Weight-to-power ratio 9.6 kg/Hp, 103.8 Hp/tonne
Weight-to-torque ratio 7.9 kg/Nm, 126.6 Nm/tonne
Engine specs
Power 123 Hp @ 6600 rpm.
Power per litre 82.6 Hp/l
Torque 150 Nm @ 4800 rpm.
110.63 lb.-ft. @ 4800 rpm.
Engine layout Front, Transverse
Engine Model/Code M15A-FKS
Engine displacement 1490 cm3
90.93 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 80.5 mm
3.17 in.
Piston Stroke 97.6 mm
3.84 in.
Compression ratio 13.9:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 3.4 l
3.59 US qt | 2.99 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.8 l
6.13 US qt | 5.1 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1185-1380 kg
2612.48 – 3042.38 lbs.
Trunk (boot) space – minimum 471 l
16.63 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Permitted trailer load with brakes (12%) 1300 kg
2866.01 lbs.
Permitted trailer load without brakes 450 kg
992.08 lbs.
Dimensions
Length 4630 mm
182.28 in.
Width 1780 mm
70.08 in.
Height 1435 mm
56.5 in.
Wheelbase 2700 mm
106.3 in.
Front track 1531 mm
60.28 in.
Rear (Back) track 1544 mm
60.79 in.
Front overhang 935 mm
36.81 in.
Rear overhang 995 mm
39.17 in.
Minimum turning circle (turning diameter) 10.4 m
34.12 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox automatic transmission CVT
Front suspension Independent type McPherson
Rear suspension Double wishbone
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 195/65 R15; 205/55 R16
Wheel rims size 6.5J x 15; 7J x 16
