Specifications: Toyota Corolla XII (E210, facelift 2022) (USA) 2.0 (169 Hp) CVT 2022, 2023, 2024, 2025

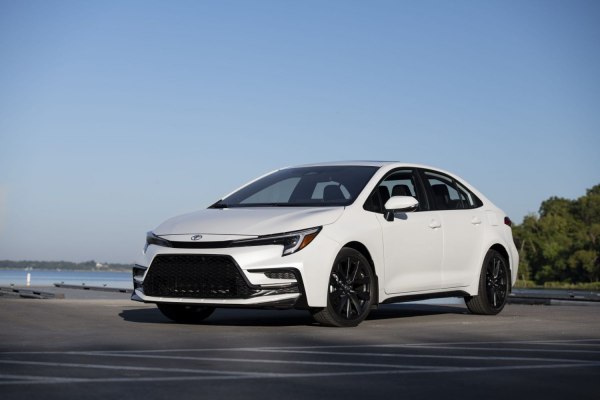

2023 Toyota Corolla XII (E210, facelift 2022) (USA) - Photo 1

Toyota Corolla XII (E210, facelift 2022) (USA) 2.0 (169 Hp) CVT – Full specifications
General information
Brand Toyota
Model Corolla
Generation Corolla XII (E210, facelift 2022) (USA)
Modification (Engine) 2.0 (169 Hp) CVT
Start of production June, 2022 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban (EPA) 7.4 l/100 km
31.79 US mpg
38.17 UK mpg
13.51 km/l
Fuel consumption (economy) – extra urban (EPA) 5.7 l/100 km
41.27 US mpg
49.56 UK mpg
17.54 km/l
Fuel consumption (economy) – combined (EPA) 6.7 l/100 km
35.11 US mpg
42.16 UK mpg
14.93 km/l
Fuel Type Petrol (Gasoline)
Emission standard LEV III, SULEV 30
Weight-to-power ratio 7.9 kg/Hp, 126.1 Hp/tonne
Weight-to-torque ratio 6.5 kg/Nm, 153 Nm/tonne
Engine specs
Power 169 Hp @ 6600 rpm.
Power per litre 85.1 Hp/l
Torque 205 Nm @ 4400 rpm.
151.2 lb.-ft. @ 4400 rpm.
Engine layout Front, Transverse
Engine Model/Code M20A-FKS
Engine displacement 1987 cm3
121.25 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 80.5 mm
3.17 in.
Piston Stroke 97.6 mm
3.84 in.
Compression ratio 13:1
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, Dual VVT-i
Engine oil capacity 4.6 l
4.86 US qt | 4.05 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.2 l
6.55 US qt | 5.46 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1340 kg
2954.19 lbs.
Trunk (boot) space – minimum 371 l
13.1 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Dimensions
Length 4630 mm
182.28 in.
Width 1781 mm
70.12 in.
Height 1435 mm
56.5 in.
Wheelbase 2700 mm
106.3 in.
Front track 1532 mm
60.31 in.
Rear (Back) track 1549 mm
60.98 in.
Ride height (ground clearance) 135 mm
5.31 in.
Drag coefficient (Cd) 0.31
Minimum turning circle (turning diameter) 10.9 m
35.76 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox automatic transmission CVT
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Double wishbone, Transverse stabilizer, Coil spring
Front brakes Ventilated discs, 274 mm
Rear brakes Disc, 259 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/55 R16; 225/40 R18
Wheel rims size 7J x 16; 8J x 18
