Specifications: Toyota Corolla XII (E210) (USA) 1.8 (121 Hp) Hybrid CVTi 2019, 2020, 2021, 2022

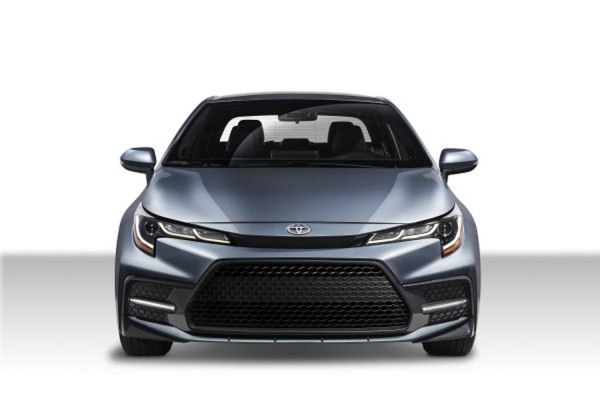

2020 Toyota Corolla XII (E210) (USA) - Photo 1

Toyota Corolla XII (E210) (USA) 1.8 (121 Hp) Hybrid CVTi – Full specifications
General information
Brand Toyota
Model Corolla
Generation Corolla XII (E210) (USA)
Modification (Engine) 1.8 (121 Hp) Hybrid CVTi
Start of production February, 2019 year
End of production 2022 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 4.4 l/100 km
53.46 US mpg
64.2 UK mpg
22.73 km/l
Fuel consumption (economy) – extra urban 4.5 l/100 km
52.27 US mpg
62.77 UK mpg
22.22 km/l
Fuel consumption (economy) – combined 4.5 l/100 km
52.27 US mpg
62.77 UK mpg
22.22 km/l
Fuel Type Petrol (Gasoline)
Emission standard California LEV III
Weight-to-power ratio 11.4 kg/Hp, 87.5 Hp/tonne
Weight-to-torque ratio 9.7 kg/Nm, 102.7 Nm/tonne
Electric cars and hybrids specs
Battery voltage 201.6 V
Battery technology Nickel-metal hydride (NiMH)
Battery location Under the rear seats
Electric motor 1
Electric motor power 72 Hp
Electric motor Torque 163 Nm

120.22 lb.-ft.
Electric motor location Integrated into the transmission
Electric motor type Synchronous
System power 121 Hp
Internal combustion engine specs
Power 121 Hp @ 5200 rpm.
Power per litre 67.3 Hp/l
Torque 142 Nm @ 3600 rpm.
104.73 lb.-ft. @ 3600 rpm.
Engine layout Front, Transverse
Engine Model/Code 2ZR-FXE
Engine displacement 1798 cm3
109.72 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 80.5 mm
3.17 in.
Piston Stroke 88.3 mm
3.48 in.
Compression ratio 13:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC-VVT-i
Engine oil capacity 4.2 l
4.44 US qt | 3.7 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.6 l
5.92 US qt | 4.93 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1383 kg
3048.99 lbs.
Trunk (boot) space – minimum 371 l
13.1 cu. ft.
Fuel tank capacity 43 l
11.36 US gal | 9.46 UK gal
Dimensions
Length 4630 mm
182.28 in.
Width 1781 mm
70.12 in.
Height 1435 mm
56.5 in.
Wheelbase 2700 mm
106.3 in.
Front track 1532 mm
60.31 in.
Rear (Back) track 1534 mm
60.39 in.
Ride height (ground clearance) 130 mm
5.12 in.
Minimum turning circle (turning diameter) 10.4 m
34.12 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox automatic transmission CVTi
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Double wishbone
Front brakes Ventilated discs, 274 mm
Rear brakes Disc, 259 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 195/65 R15
Wheel rims size 6.5J x 15
