| General information | |
|---|---|
| Brand | Toyota |
| Model | Crown |
| Generation | Crown Estate (S170, facelift 2001) |
| Modification (Engine) | 3.0 24V (220 Hp) Automatic |
| Start of production | 2001 year |
| End of production | 2007 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Station wagon (estate) |
| Seats | 5 |
| Doors | 5 |
| Performance specs | |
| Fuel Type | Petrol (Gasoline) |
| Weight-to-power ratio | 7.6 kg/Hp, 131.7 Hp/tonne |
| Weight-to-torque ratio | 5.7 kg/Nm, 176 Nm/tonne |
| Engine specs | |
| Power | 220 Hp @ 5600 rpm. |
| Power per litre | 73.4 Hp/l |
| Torque | 294 Nm @ 3600 rpm. 216.84 lb.-ft. @ 3600 rpm. |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | 2JZ-FSE |
| Engine displacement | 2997 cm3 182.89 cu. in. |
| Number of cylinders | 6 |
| Engine configuration | Inline |
| Cylinder Bore | 86 mm 3.39 in. |
| Piston Stroke | 86 mm 3.39 in. |
| Compression ratio | 11.3:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Direct injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine oil capacity | 5.4 l 5.71 US qt | 4.75 UK qt |
| Engine oil specification |  Log in to see. |
| Coolant | 7.5 l 7.93 US qt | 6.6 UK qt |
|
|
|
| Space, Volume and weights | |
| Kerb Weight | 1670 kg 3681.72 lbs. |
| Max. weight | 1945 kg 4287.99 lbs. |
| Max load | 275 kg 606.27 lbs. |
| Trunk (boot) space – minimum | 530 l 18.72 cu. ft. |
| Fuel tank capacity | 70 l 18.49 US gal | 15.4 UK gal |
| Dimensions | |
| Length | 4835 mm 190.35 in. |
| Width | 1765 mm 69.49 in. |
| Height | 1510 mm 59.45 in. |
| Wheelbase | 2780 mm 109.45 in. |
| Front track | 1495 mm 58.86 in. |
| Rear (Back) track | 1475 mm 58.07 in. |
| Ride height (ground clearance) | 155 mm 6.1 in. |
| Minimum turning circle (turning diameter) | 11.2 m 36.75 ft. |
| Drivetrain, brakes and suspension specs | |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the rear wheels of the vehicle. |
| Drive wheel | Rear wheel drive |
| Number of gears and type of gearbox | 5 gears, automatic transmission |
| Front suspension | Double wishbone |
| Rear suspension | Double wishbone |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Tires size | 215/55 R16 |
| Wheel rims size | 16 |
Related articles
Specifications: Daihatsu Move Latte (L55) 0.7 i 12V (58 Hp) 2003, 2004, 2005, 2006, 2007, 2008, 2009
Specifications: Daihatsu Rocky Hard Top (F7,F8) 2.8 TD (98 Hp) 1993, 1994, 1995, 1996, 1997, 1998
Specifications: Daihatsu Sirion (M1) 1.0 i 12V (56 Hp) Automatic 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
Specifications: Daihatsu Terios I (J100) 1.3 i 16V 4WD (86 Hp) Automatic 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006
Specifications: Opel Corsa B 1.4i 16V (90 Hp) Automatic 1994, 1995, 1996, 1997
Specifications: Opel Corsa B Kasten 1.7 D (60 Hp) 1999, 2000
Specifications: Opel Corsa C (facelift 2003) 1.8 16V (125 Hp) 2003, 2004, 2005, 2006

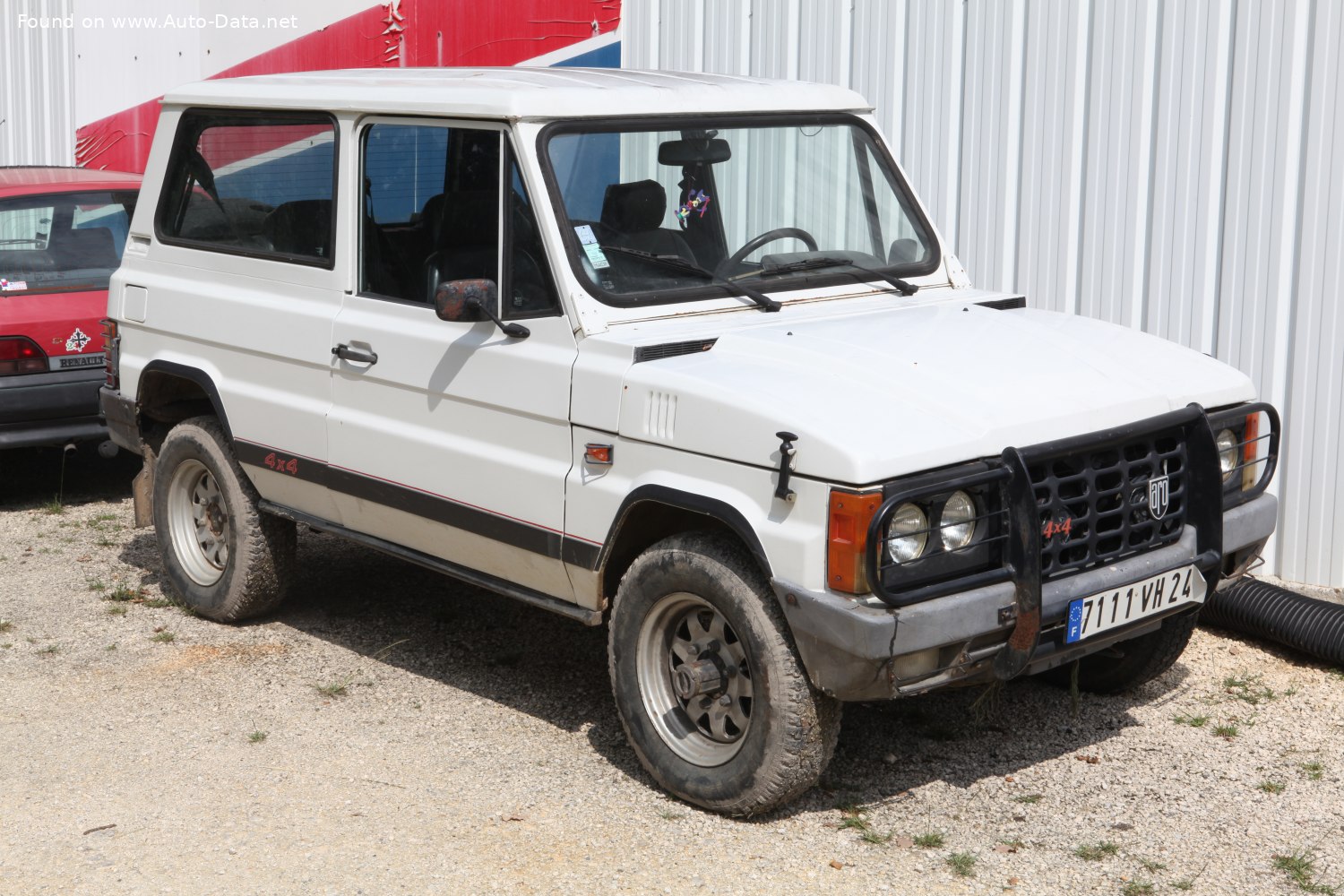

Specifications: Aro 10 1.6 i 16V (10.4) (106 Hp) 2000, 2001, 2002, 2003, 2004, 2005, 2006
Specifications: Aro 24 3.0 V6 (5 dr) (147 Hp) 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006
Specifications: Aston Martin AMV8 5.3 V8 (385 Hp) Vantage 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989

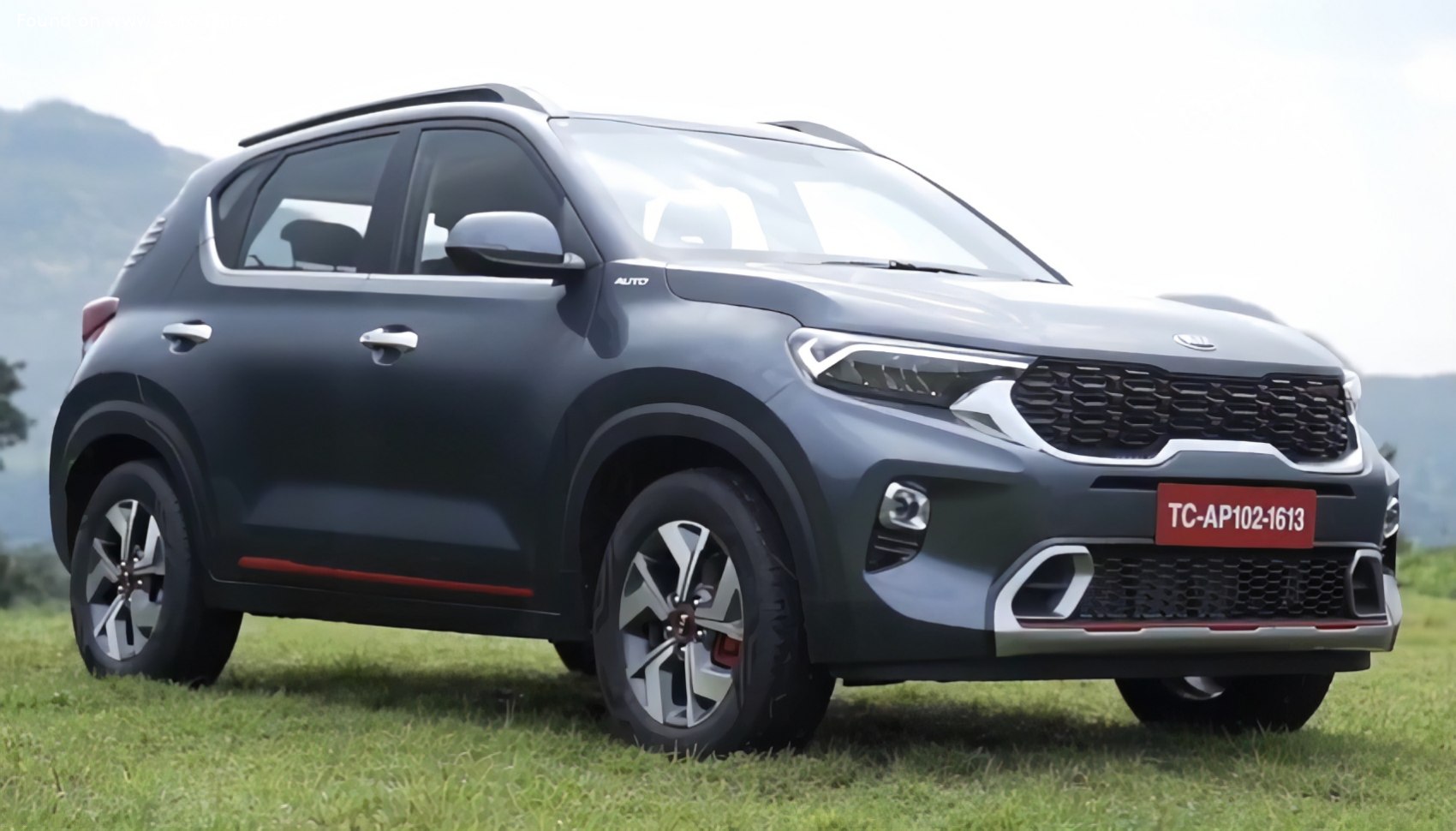

Specifications: Kia Sonet G1.2 SMARTSTREAM (83 Hp) 2020, 2021, 2022, 2023
Specifications: Kia Sorento II 2.4 4WD (140 Hp) Automatic 2009, 2010, 2011, 2012
Specifications: Audi Coupe (B2 81, 85, facelift 1984) GT 1.8i (112 Hp) 1986, 1987, 1988
Specifications: Toyota Tacoma I Double Cab (facelift 2000) 3.4 V6 (190 Hp) 2000, 2001, 2002, 2003, 2004

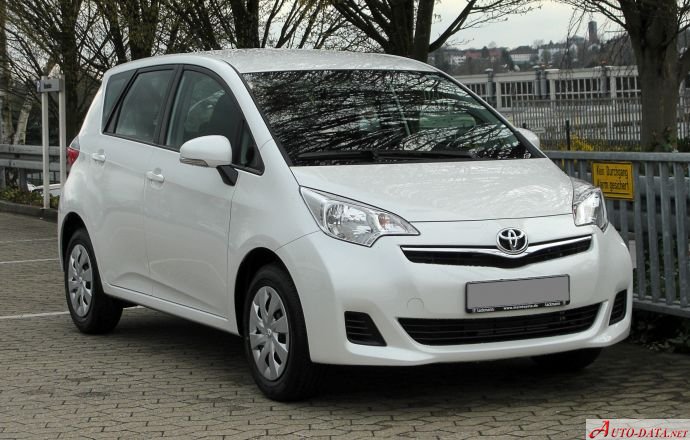

Specifications: Toyota Verso-S II 1.4 D-4D DPF (89 Hp) MM 2010, 2011, 2012, 2013, 2014, 2015

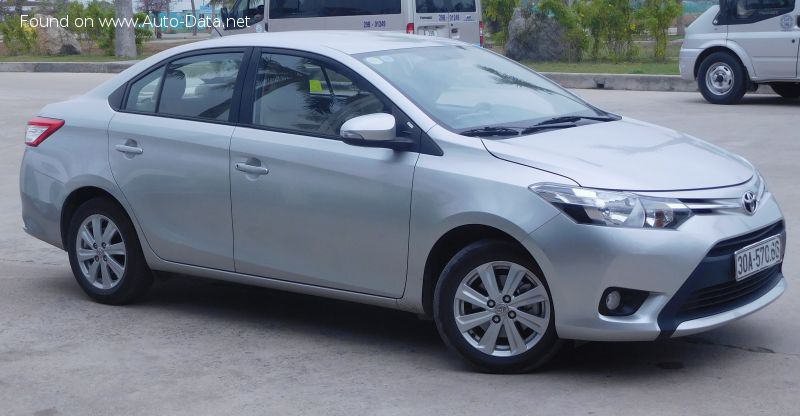

Specifications: Toyota Vios III 1.5 VVTi (109 Hp) 2013, 2014, 2015, 2016
