Specifications: Toyota Crown XIV Royal (S210, facelift 2016) 2.5 D-4S (178+143 Hp) Hybrid 4WD e-CVT 2016, 2017, 2018

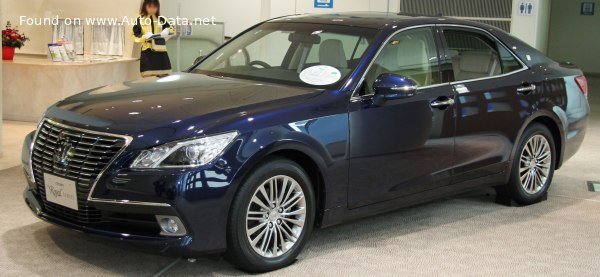

2016 Toyota Crown XIV Royal (S210, facelift 2016) - Photo 1

Toyota Crown XIV Royal (S210, facelift 2016) 2.5 D-4S (178+143 Hp) Hybrid 4WD e-CVT – Full specifications
General information
Brand Toyota
Model Crown
Generation Crown XIV Royal (S210, facelift 2016)
Modification (Engine) 2.5 D-4S (178+143 Hp) Hybrid 4WD e-CVT
Start of production 2016 year
End of production 2018 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 9.7 kg/Hp, 102.9 Hp/tonne
Weight-to-torque ratio 7.8 kg/Nm, 127.7 Nm/tonne
Electric cars and hybrids specs
Battery technology Nickel-metal hydride (NiMH)
Battery location Behind the back wall of the passenger cabin
Electric motor 1
Electric motor power 143 Hp
Electric motor Torque 300 Nm

221.27 lb.-ft.
Electric motor model/code 1KM
Electric motor location Integrated into the transmission
Electric motor type Synchronous
Internal combustion engine specs
Power 178 Hp @ 6000 rpm.
Power per litre 71.4 Hp/l
Torque 221 Nm @ 4200-4800 rpm.
163 lb.-ft. @ 4200-4800 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 2AR-FSE
Engine displacement 2493 cm3
152.13 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 90 mm
3.54 in.
Piston Stroke 98 mm
3.86 in.
Compression ratio 13:1
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 4.5 l
4.76 US qt | 3.96 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8.2 l
8.66 US qt | 7.21 UK qt

Space, Volume and weights
Kerb Weight 1730 kg
3814 lbs.
Max. weight 2005 kg
4420.27 lbs.
Max load 275 kg
606.27 lbs.
Fuel tank capacity 65 l
17.17 US gal | 14.3 UK gal
Dimensions
Length 4895 mm
192.72 in.
Width 1800 mm
70.87 in.
Height 1475 mm
58.07 in.
Wheelbase 2850 mm
112.2 in.
Front track 1545 mm
60.83 in.
Rear (Back) track 1540 mm
60.63 in.
Ride height (ground clearance) 155 mm
6.1 in.
Minimum turning circle (turning diameter) 10.8 m
35.43 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and the electric motor permanently drive the four wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox automatic transmission e-CVT
Front suspension Double wishbone
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 215/60 R16; 215/55 R17; 225/45 R18
Wheel rims size 7J x 16; 7.5J x 17; 8J x 18
